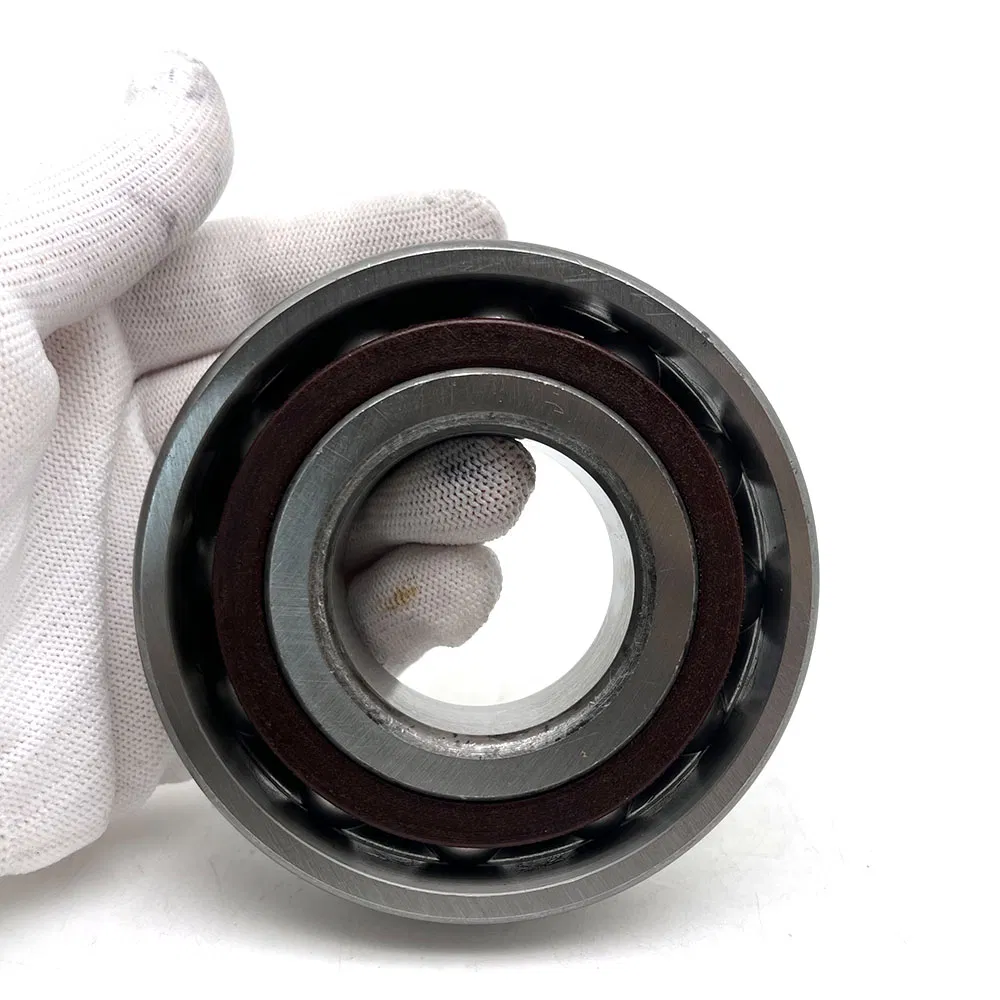

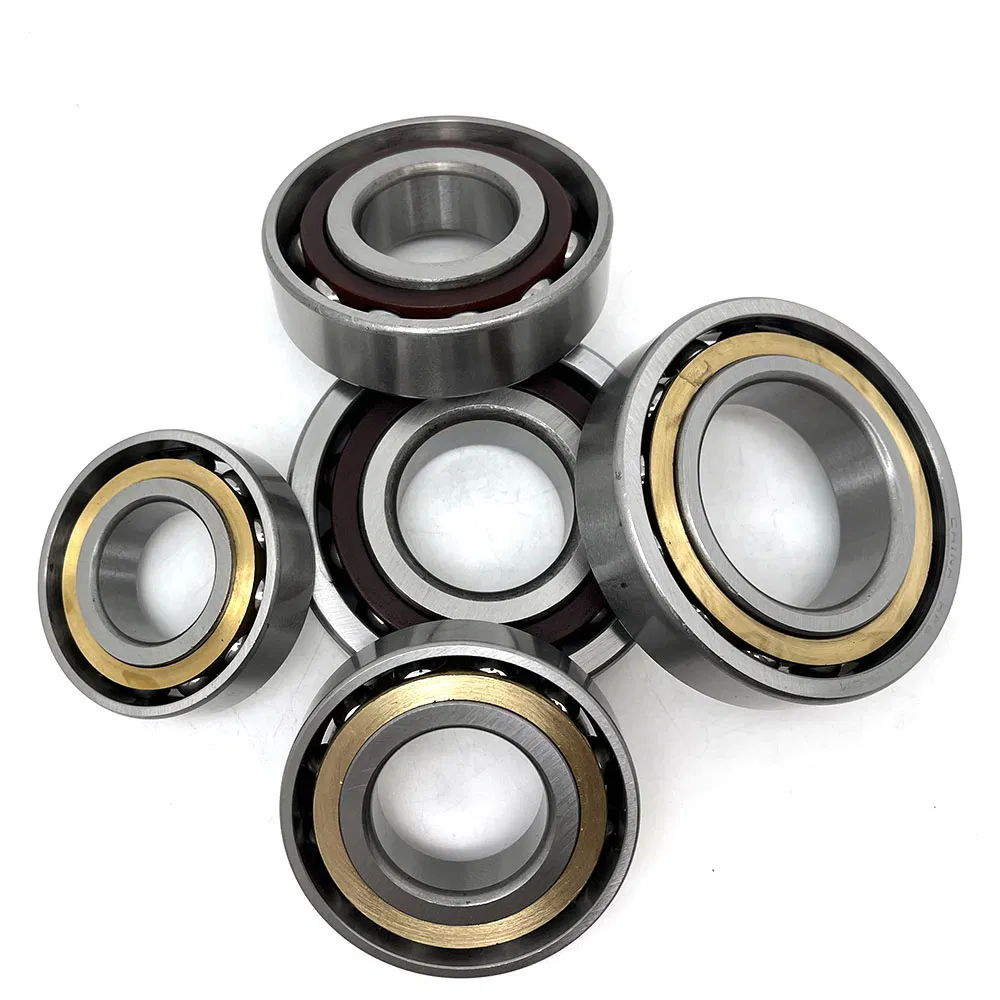

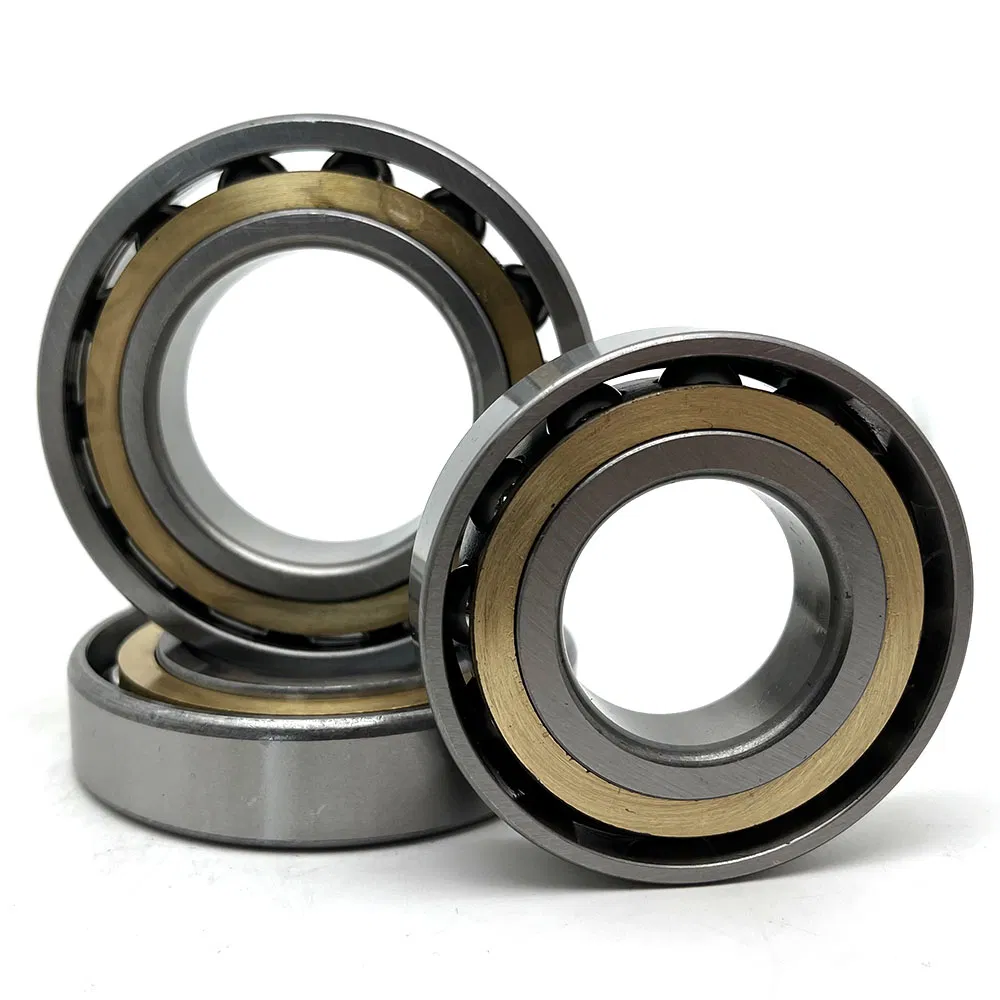

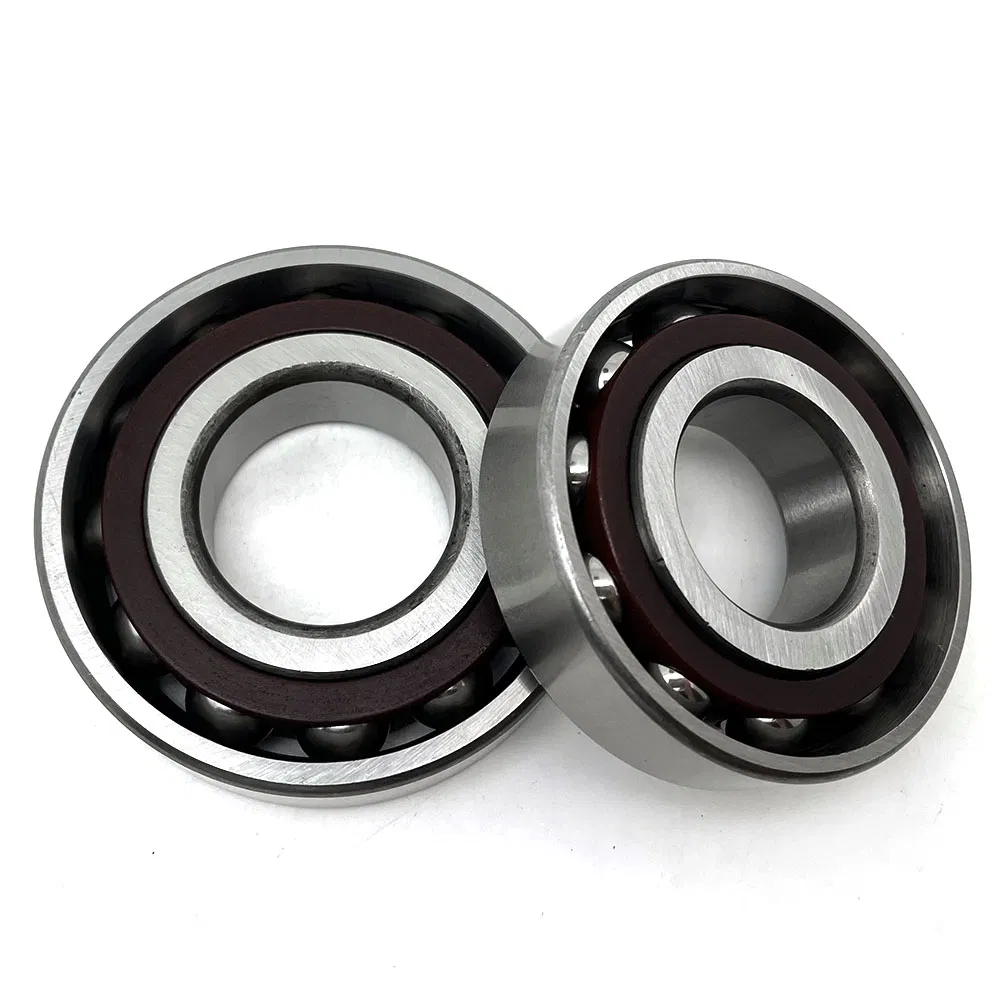

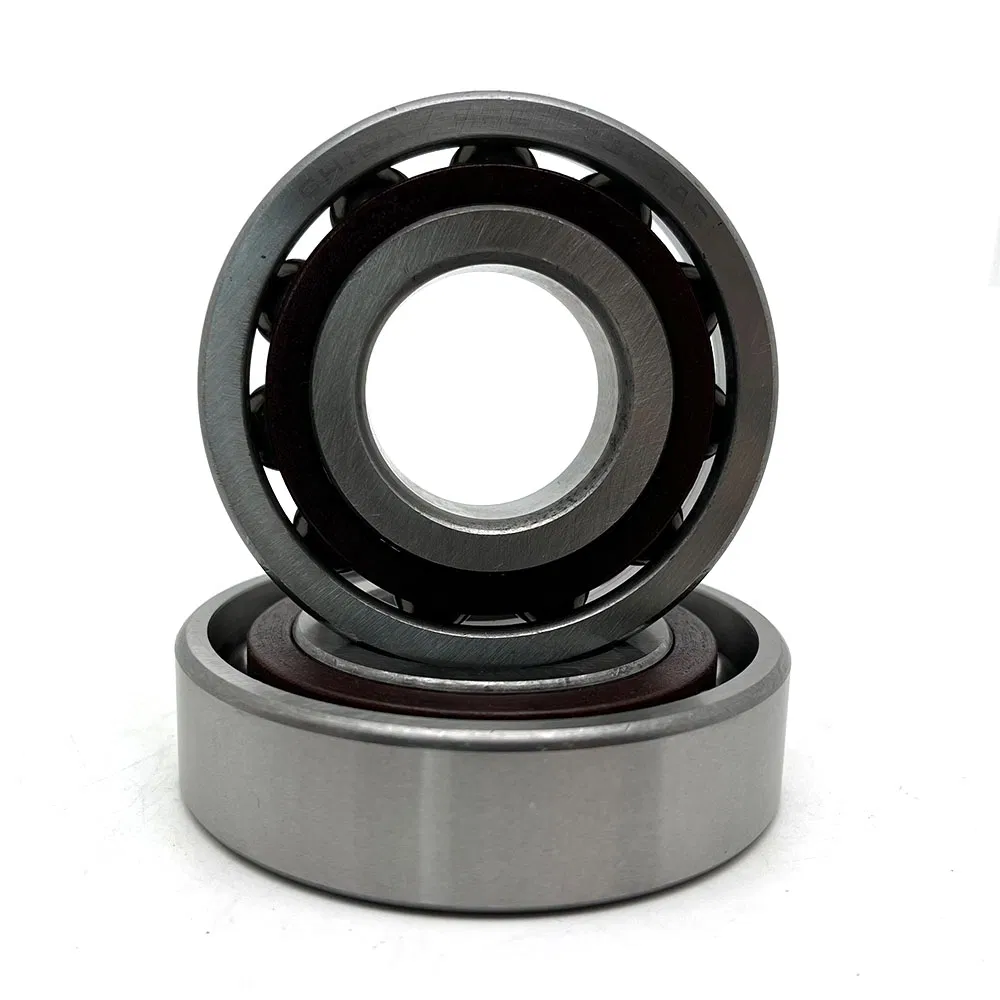

Angular contact ball bearings can withstand both radial and axial loads simultaneously. It can operate at a relatively high rotational speed. The larger the contact Angle, the higher the axial load-bearing capacity. The contact Angle is the Angle between the line connecting the contact points of the balls and the raceways in the radial plane and the vertical line of the bearing axis. High-precision and high-speed bearings usually have a contact Angle of 15 degrees. Under the action of axial force, the contact Angle will increase. Both the inner and outer rings of angular contact ball bearings have raceways, and the inner and outer rings can move in opposite directions along the axial direction of the bearing.
Technical Specifications
Material
Chrome Steel GCR15
Product Type
Angular contact ball bearing
Accuracy
P0 P2 P4 P5 P6
Customer Quality Assurance
12 months
Applications
Machine tool spindle, high frequency motor, gas turbine, centrifugal separator, drilling platform, food machinery, mechanical and electrical equipment, painting equipment, etc.
Quality Control
100% Inspection

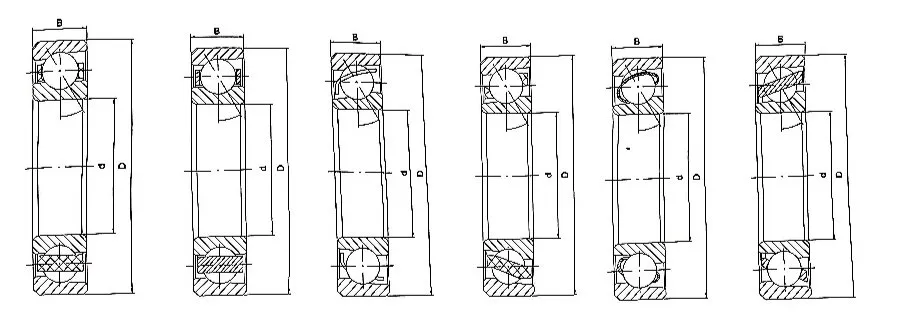

Other Available Models
Mod. No.
d (mm)
D (mm)
Height (mm)
Cr (kN)
Cor (kN)
Grease (r/min)
Oil (r/min)
Weight (kg)
7010C
50
80
16
26
21.9
13000
17000
0.29
7210C
50
90
20
42.8
31.8
12000
16000
0.485
7310B
50
110
27
64.4
44.3
5500
7300
1.14
7211C
55
100
21
52.9
40.2
11000
14000
0.635
7212C
60
110
22
64
49.5
9500
13000
0.82
7214C
70
125
24
75.9
60.2
8400
11000
1.12

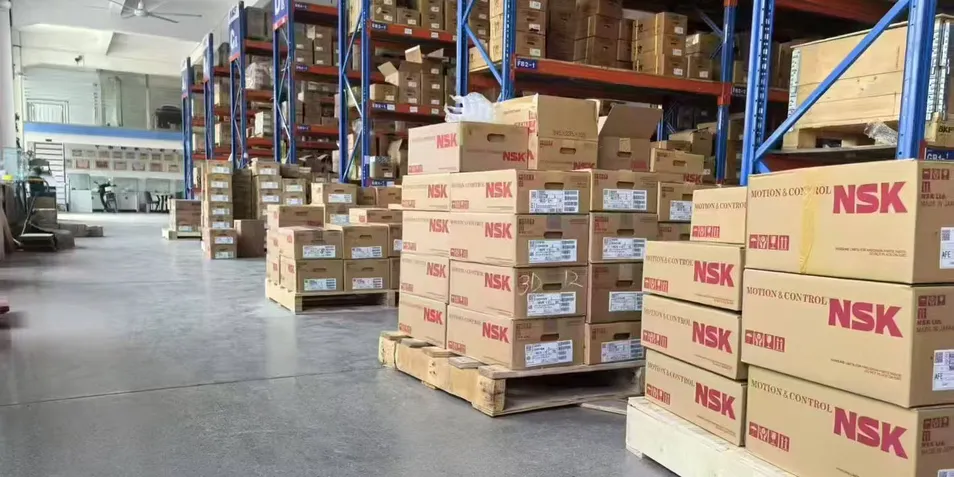

Packing & Delivery
1. Industrial Packing (Plastic Tube Packing, Paper Rolling Packing etc.)
2. Single Box Packing (White Box Packing, Color Box Packing)
3. Carton Box + Pallet
Why Choose Our Bearings
Quality Control
Strict supplier evaluations, in-coming inspections, and final pre-delivery inspections to ensure consistent product performance.

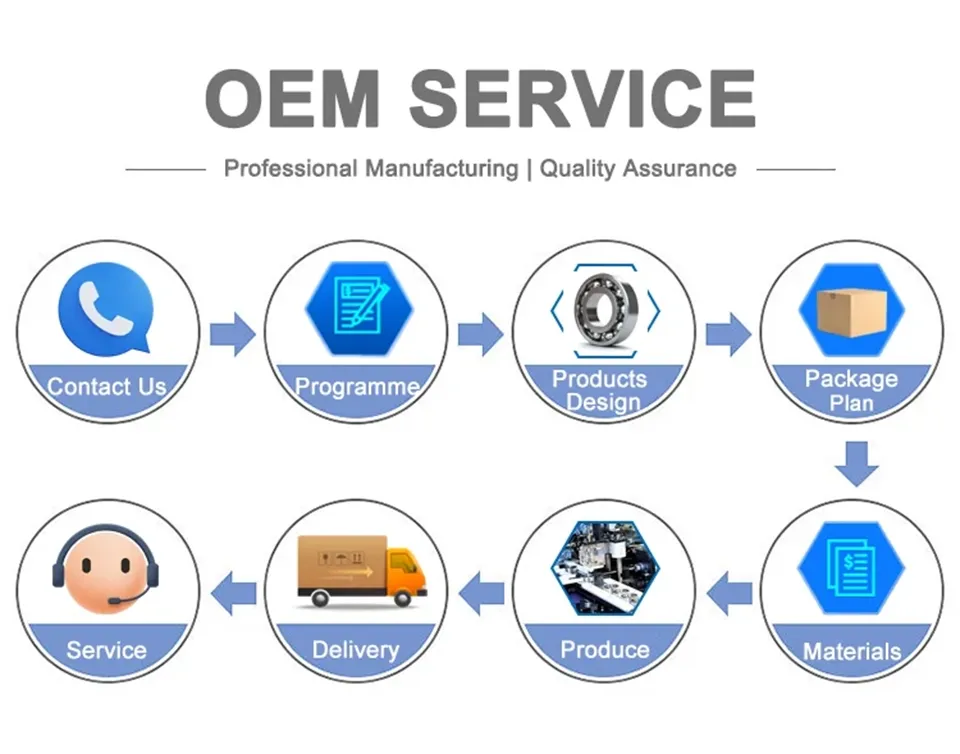

OEM & ODM Ability
Stable long-term cooperative relationships with global partners, providing professional customization and agent services.

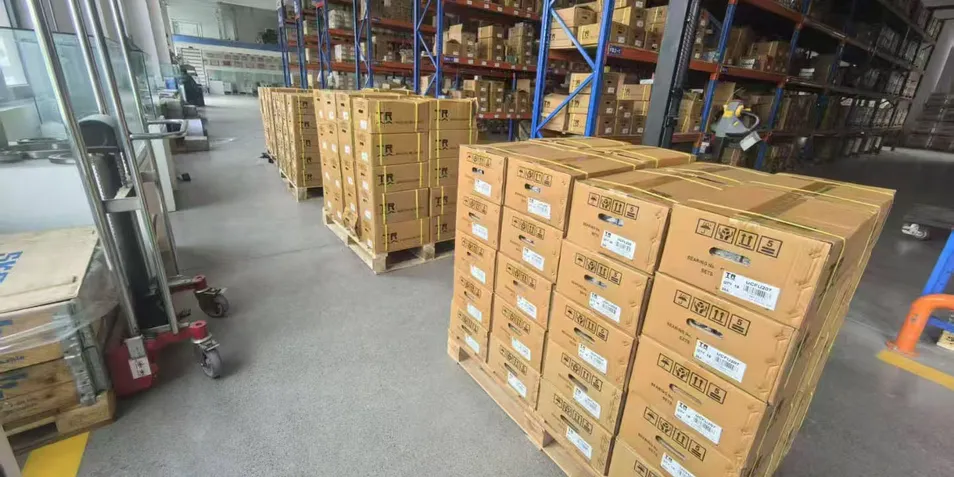

Extensive Availability
Large stock of spare bearings ready for immediate delivery across automotive, industrial, and textile fields worldwide.
Reliable Warranty
Comprehensive after-sales service and reliable warranties prioritize customer satisfaction and product integrity.

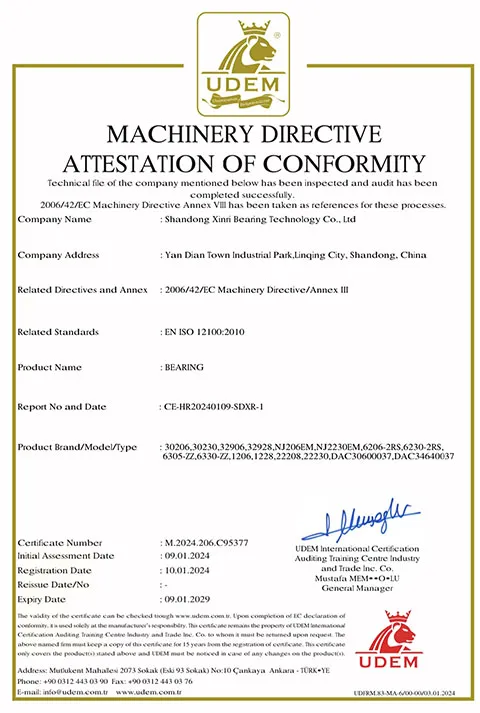

Quality Certifications
Frequently Asked Questions
What is the minimum order quantity (MOQ)?
The MOQ is negotiable as we aim to meet customer needs. While we primarily focus on wholesale (orders over 1 ton), we can discuss specific requirements for different models.
How long does it take for delivery?
Most orders are processed and shipped within 7-15 days after payment is received, depending on stock availability and order volume.
What kind of quality assurance do you offer?
We provide a standard quality assurance period of 1 year for our bearing products, backed by 100% pre-delivery inspection.
What makes your bearings competitive?

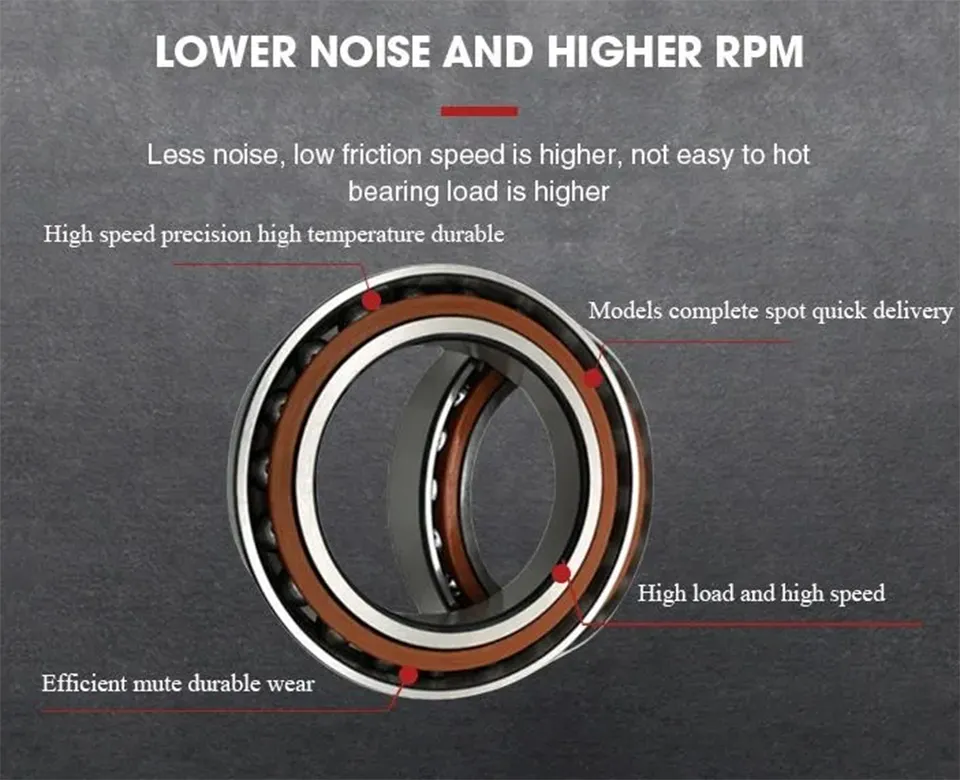

Our products are engineered for high precision, high rotational speeds, and low noise, making them ideal for high-end industrial applications.
How is your after-sales service?
We provide 100% after-sales service, including timely replies to technical queries and preparation of all necessary documentation for customs clearance.
Which payment methods are supported?
We support various payment methods to accommodate our clients' needs. Payment terms are negotiable during the ordering process.
