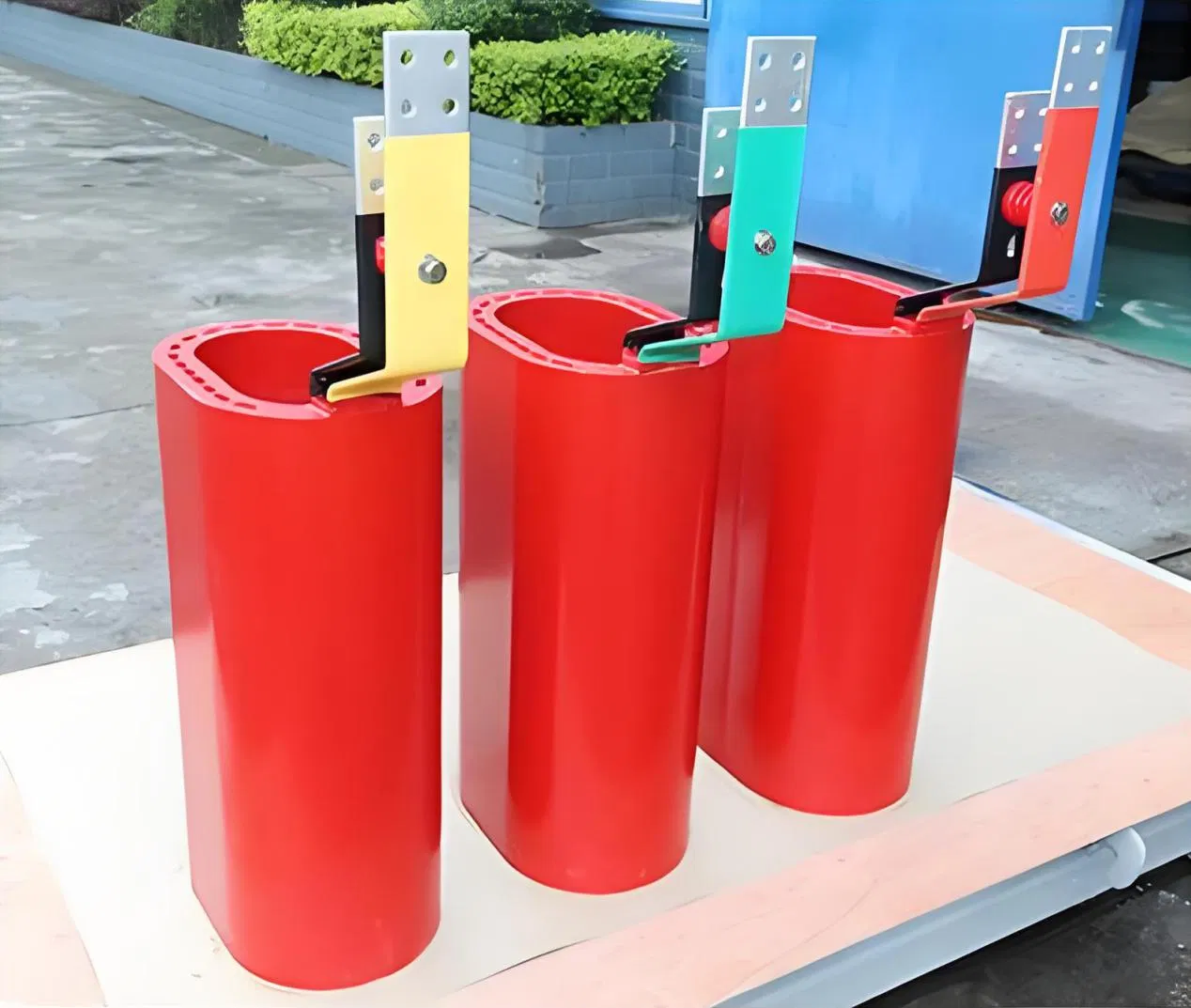

Customize Replacement Low Voltage Winding Coils Insulation Core Spare Parts for 30kVA Dry Type Transformer

1 / 5

Customize Replacement Low Voltage Winding Coils Insulation Core Spare Parts for 30kVA Dry Type Transformer

Customization:	Available
Application:	Power, Electronic, Instrument, Lighting, Rectifier, Audio
Phase:	Three

Send Inquiry

Product Description

📋 Basic Information

Core

Core-type Transformer

Cooling Method

Dry-type Transformer

Winding Type

Multi-winding Transformer

Certification

ISO9001, CCC, IEC60076

Usage

Combined, Power, Distribution, Three-Phase Transformer

Frequency

50/60Hz

High Voltage

10/11/33/35kv

Low Voltage

0.4kv

Connection

Yyn0/Dyn11

Material

Aluminum/Copper

Noise Level

48dB

Package

Wooden Case

⚡ Product Description

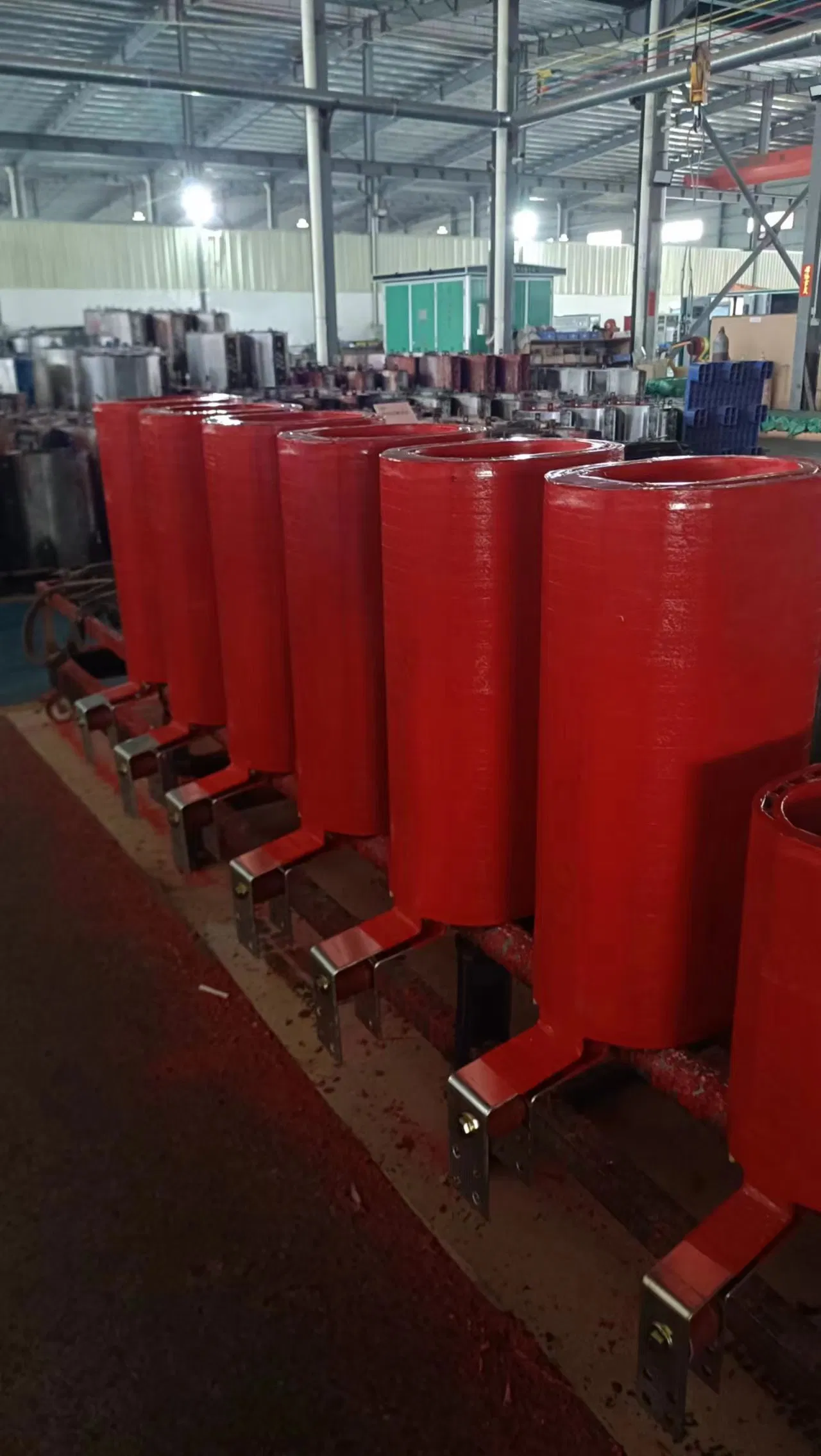

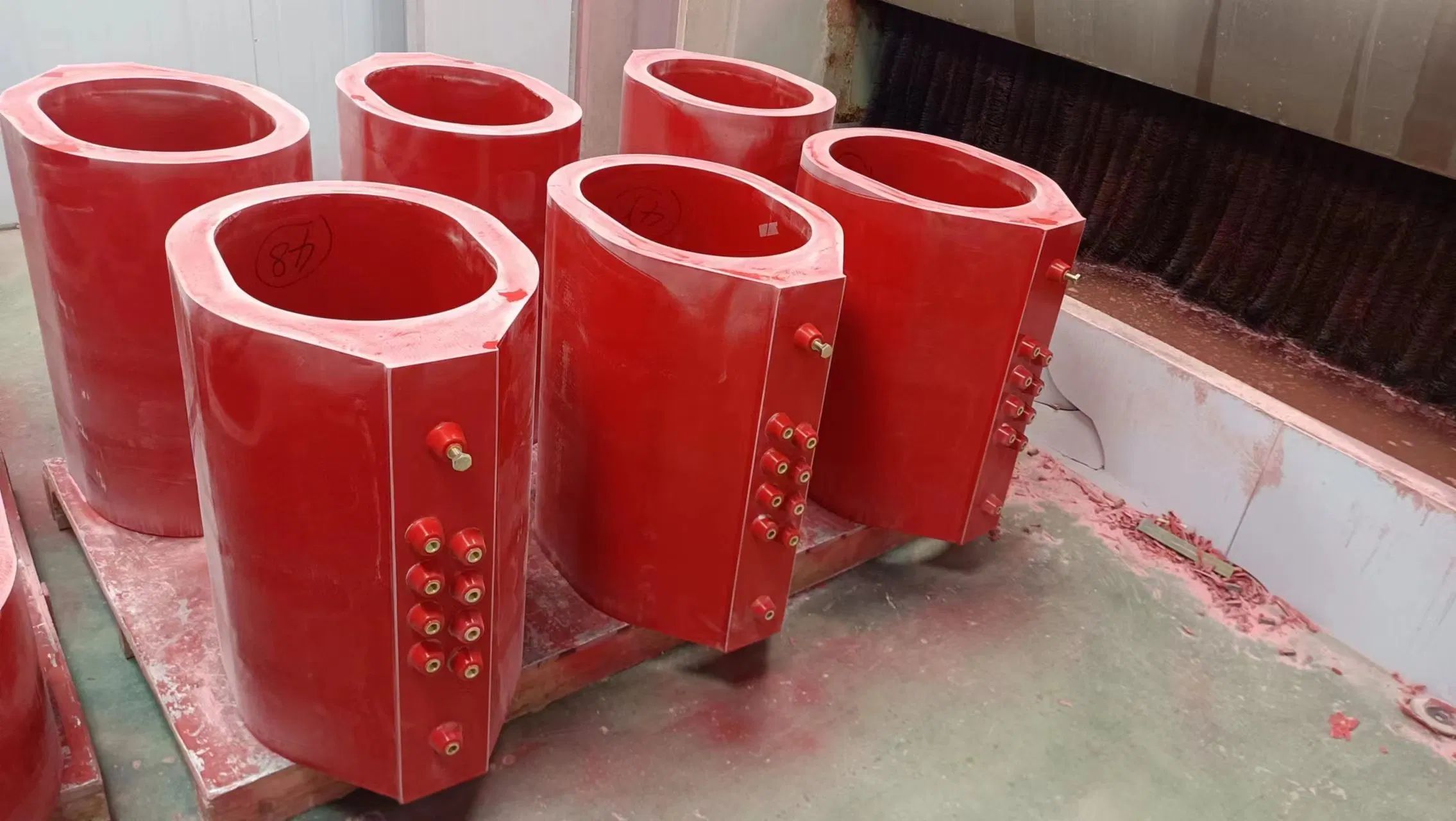

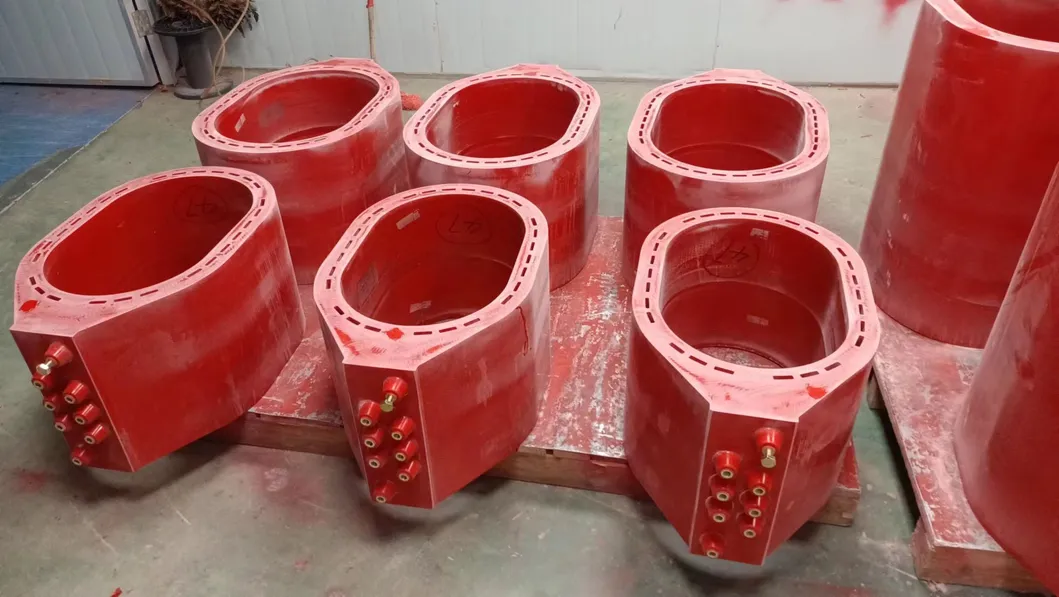

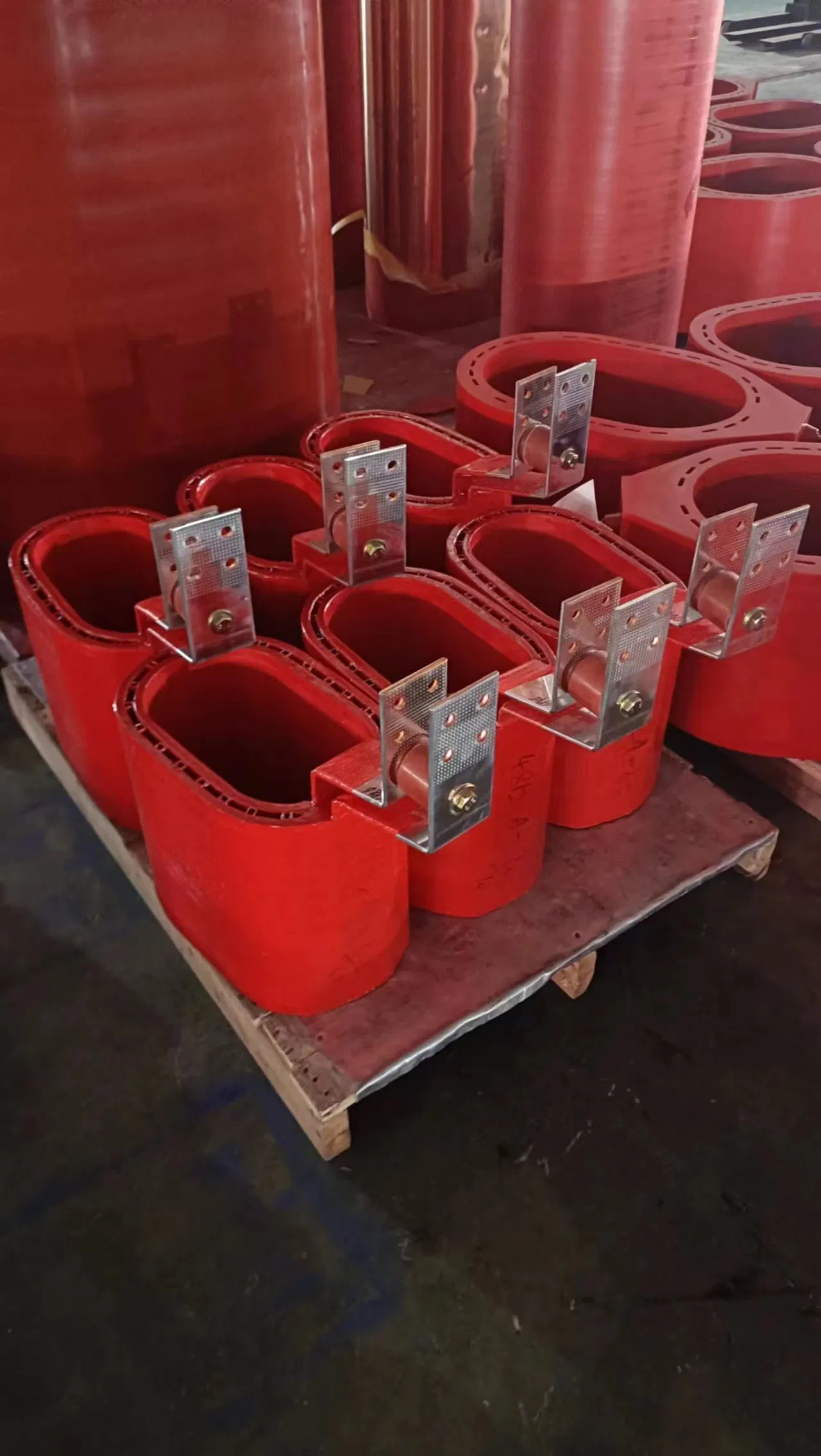

Spare Parts Winding Coils for 30kva to 3150kva Dry Type Cast Resin Transformer (3 Phase)

Key Features

✔Low loss, low partial discharge, low noise, and strong heat dissipation; can operate at 120% rated load under forced air cooling.
✔Excellent moisture-proof performance; operates normally under 100% humidity without pre-drying.
✔Fire-resistant, non-polluting, and safe for direct installation in load centers.
✔Equipped with a complete temperature protection control system for reliable operation.
✔Maintenance-free, simple installation, and low overall operating costs.

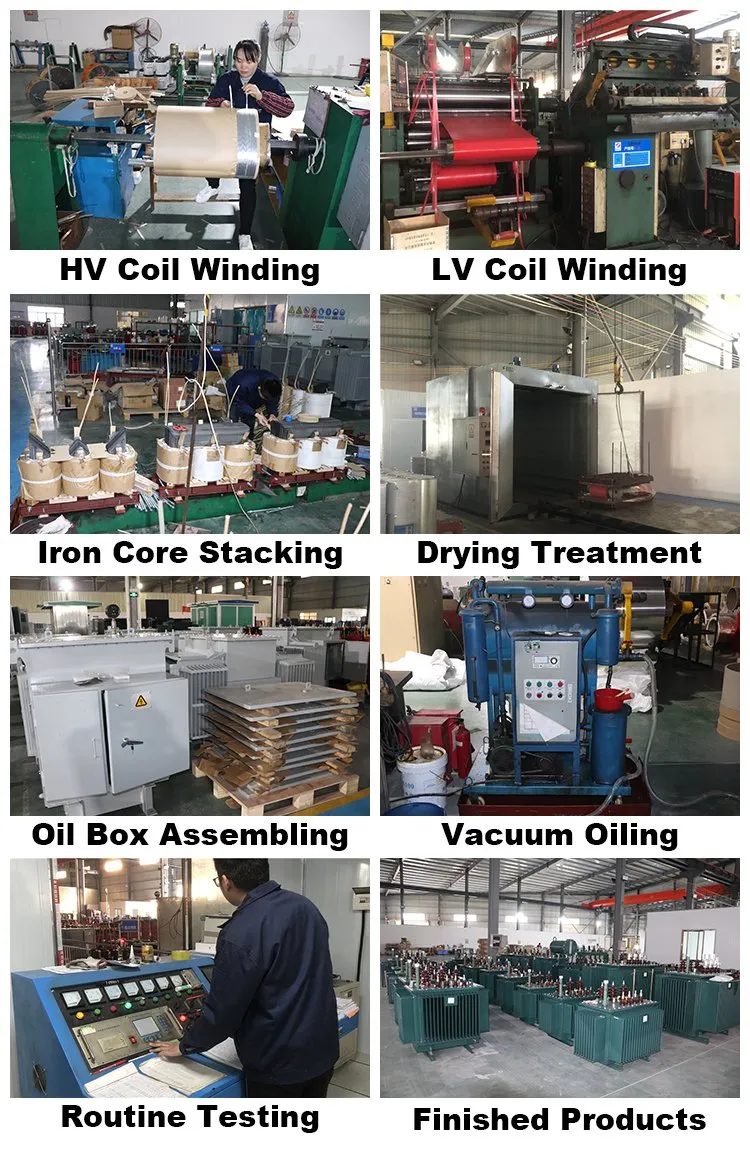

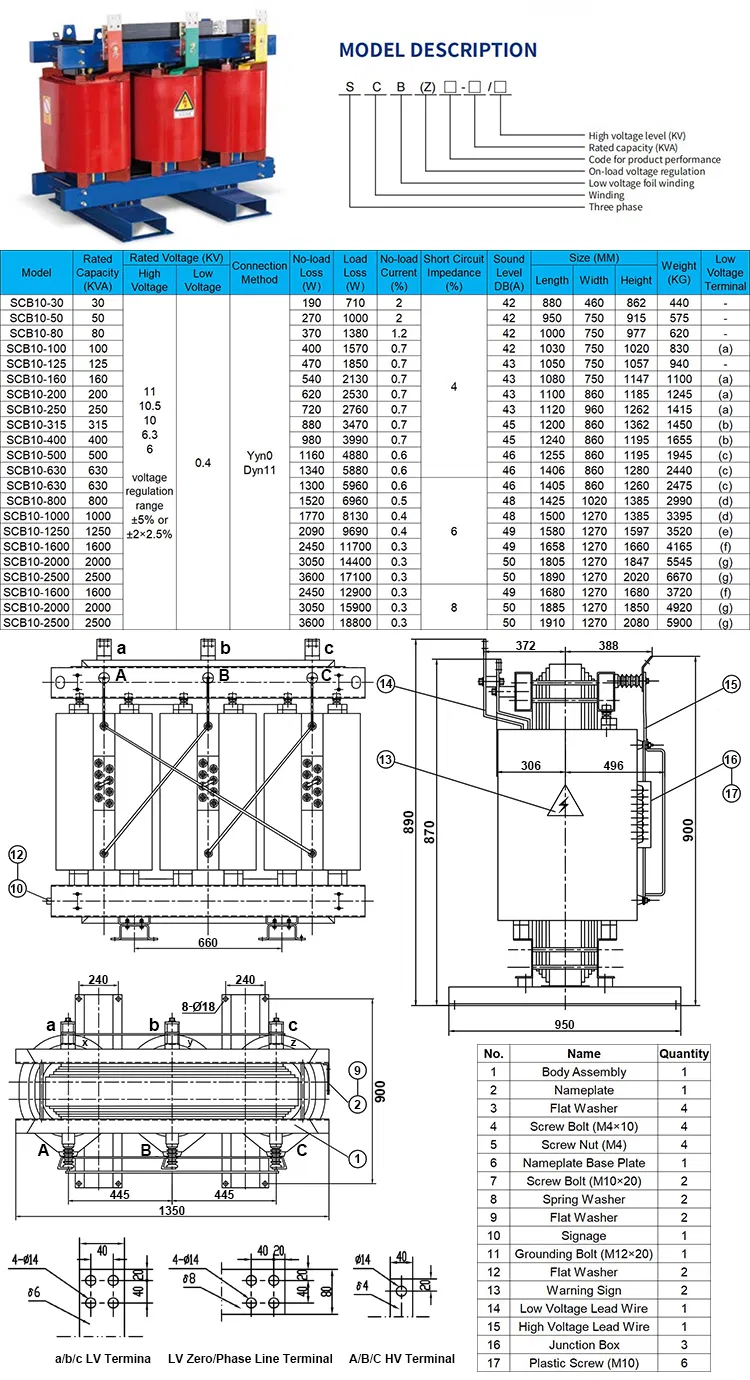

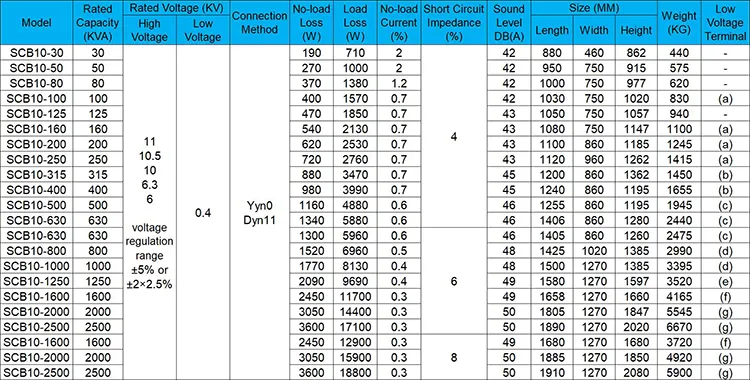

📊 Product Parameters & Process

🏢 Our Advantages

⭐More than 10 years of manufacturing experience in the electric industry.
⭐ISO9001 Quality System International Certification and multiple national patents.

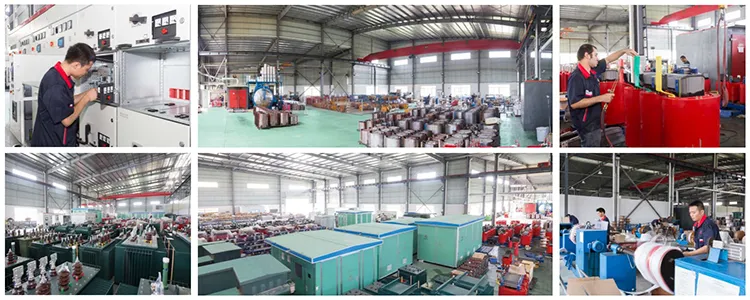

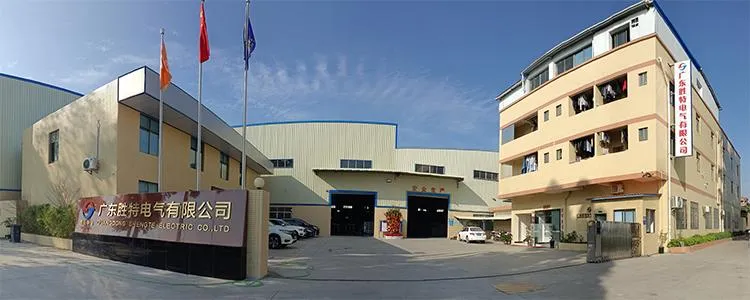

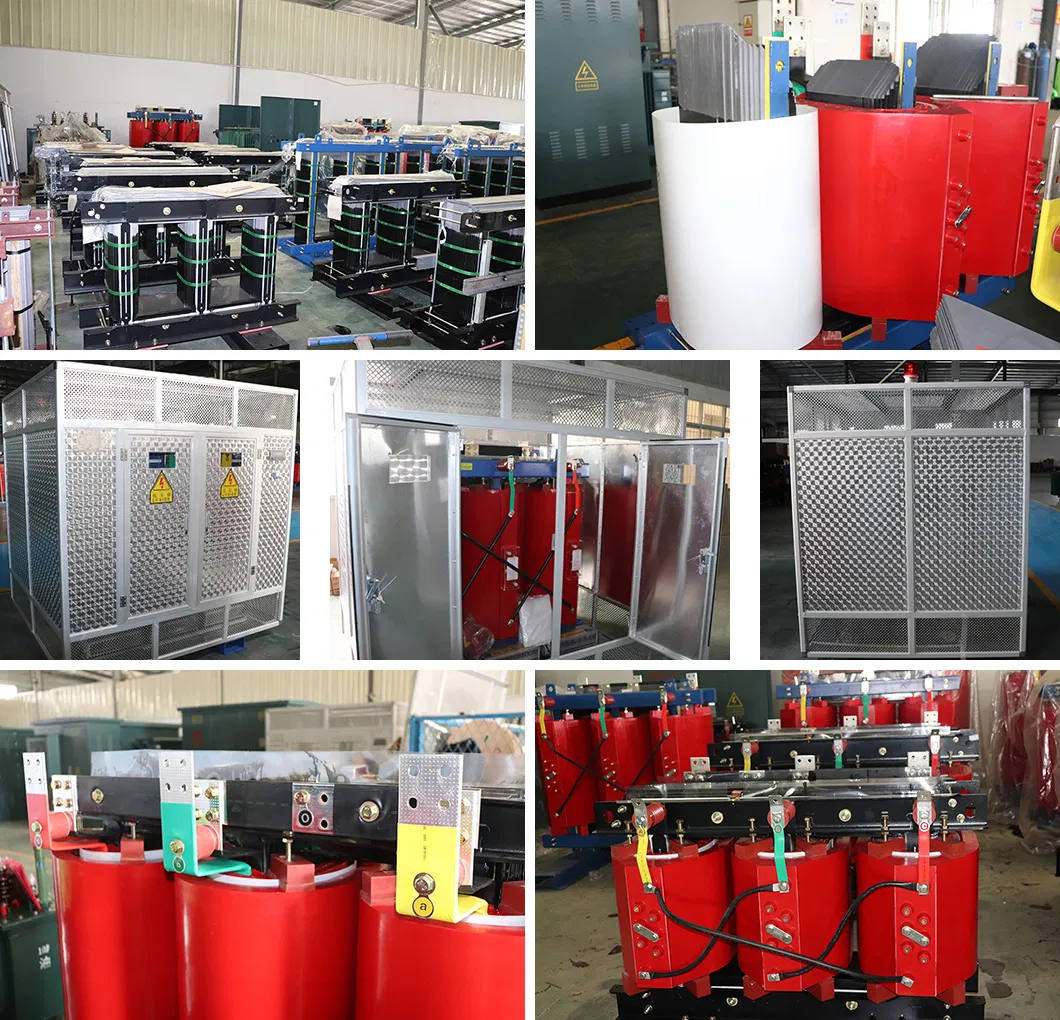

⭐Factory covers over 10,000m², with an annual capacity of 2,000+ transformers.
⭐Advanced production, testing equipment, and innovative technology.
⭐Professional R&D, installation, and after-sales service teams.
⭐Comprehensive OEM & ODM services available.

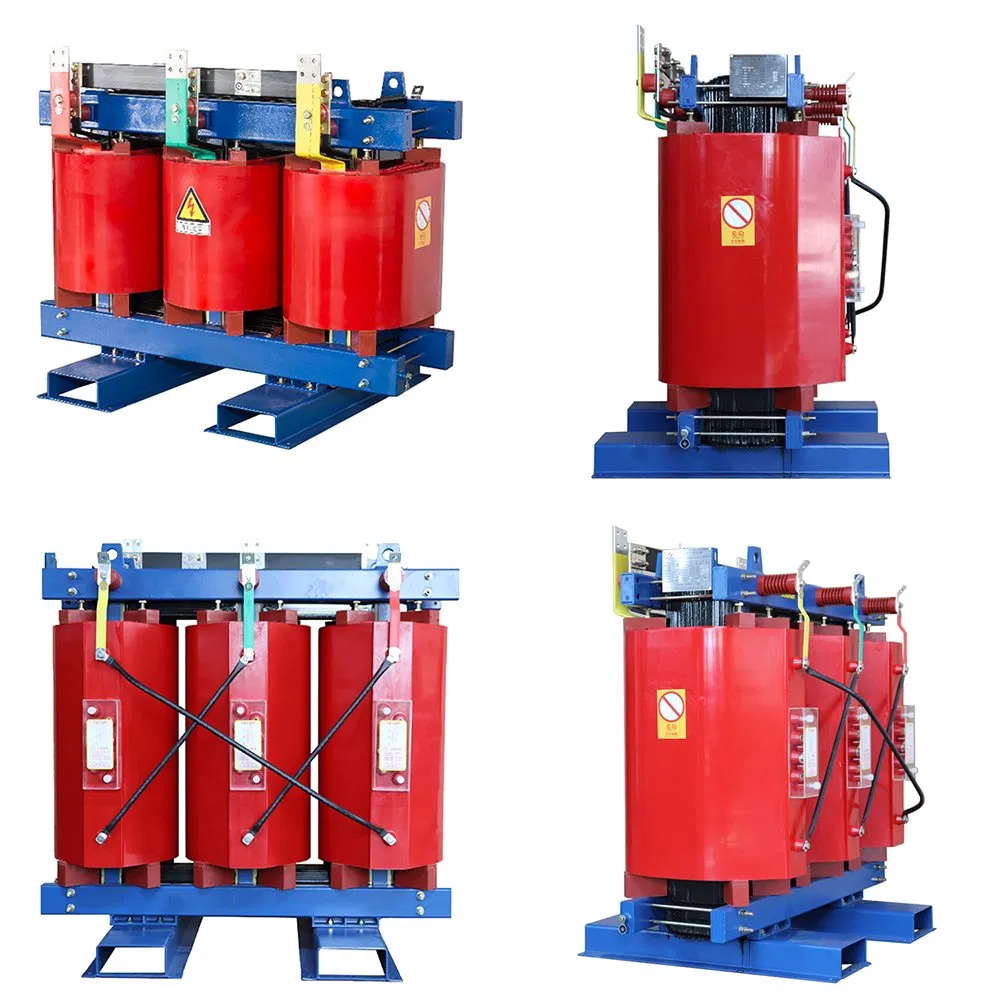

We focus on green power distribution, energy saving, and environmental protection. Our product range includes S11/S13 oil immersed transformers, SH15 amorphous alloy transformers, SCB10/SCB11 cast resin dry transformers, SGB11 open transformers, and high/low voltage electrical equipment.
