1 / 5
| Model NO. | DTP300E | Type | Road Marking Machine |
| Moving Type | Self-Propelled | Mixing Method | Hydraulic |
| Automatic Grade | Semi-Automatic | Capacity | 1000-2000 Sq. Meter/Day |
| Engine | 49.2 Kw Diesel Engine | Paint Tank | 300L |
| Applicable Paint | Thermoplastic Paint | Marking Width | 100-200mm Adjustable |

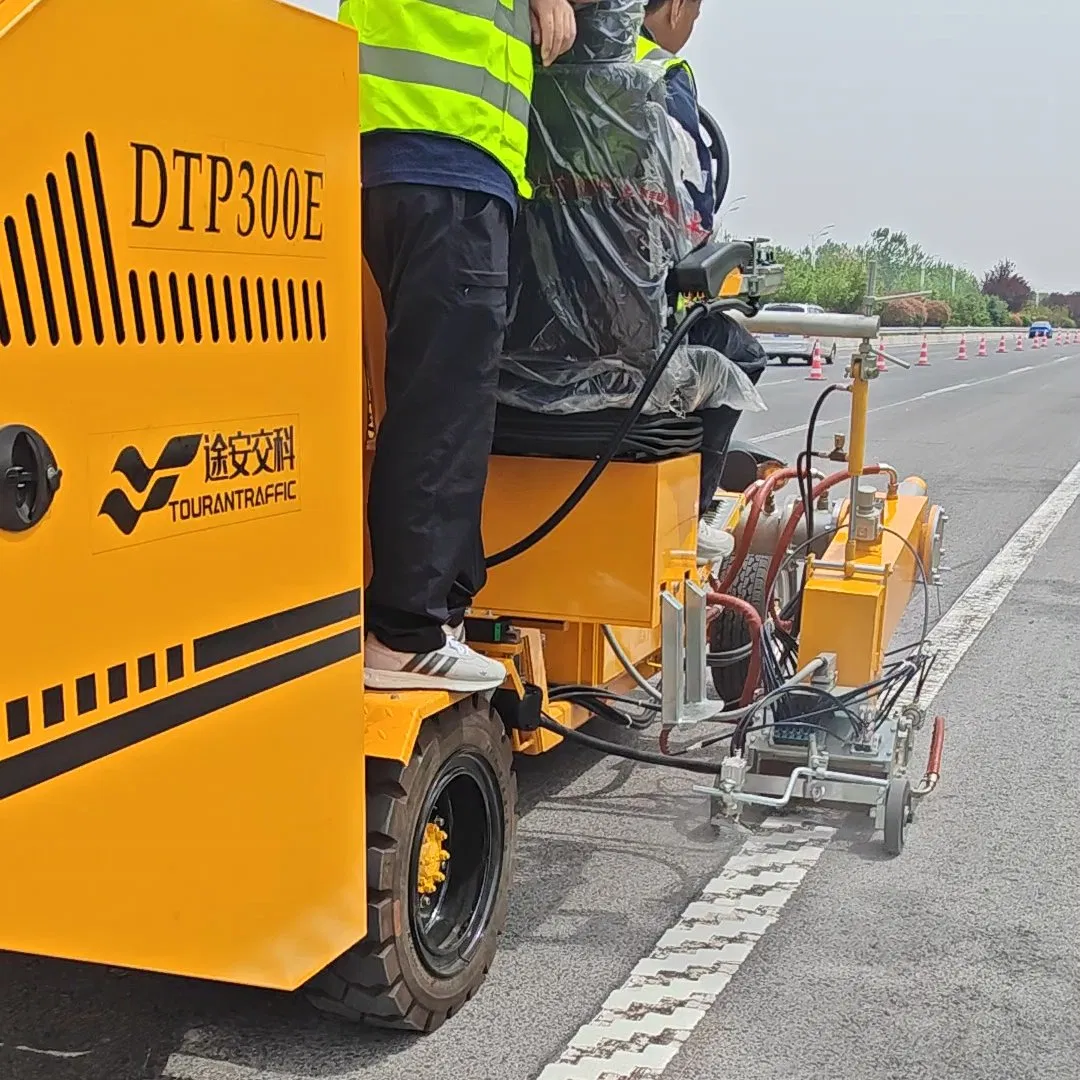

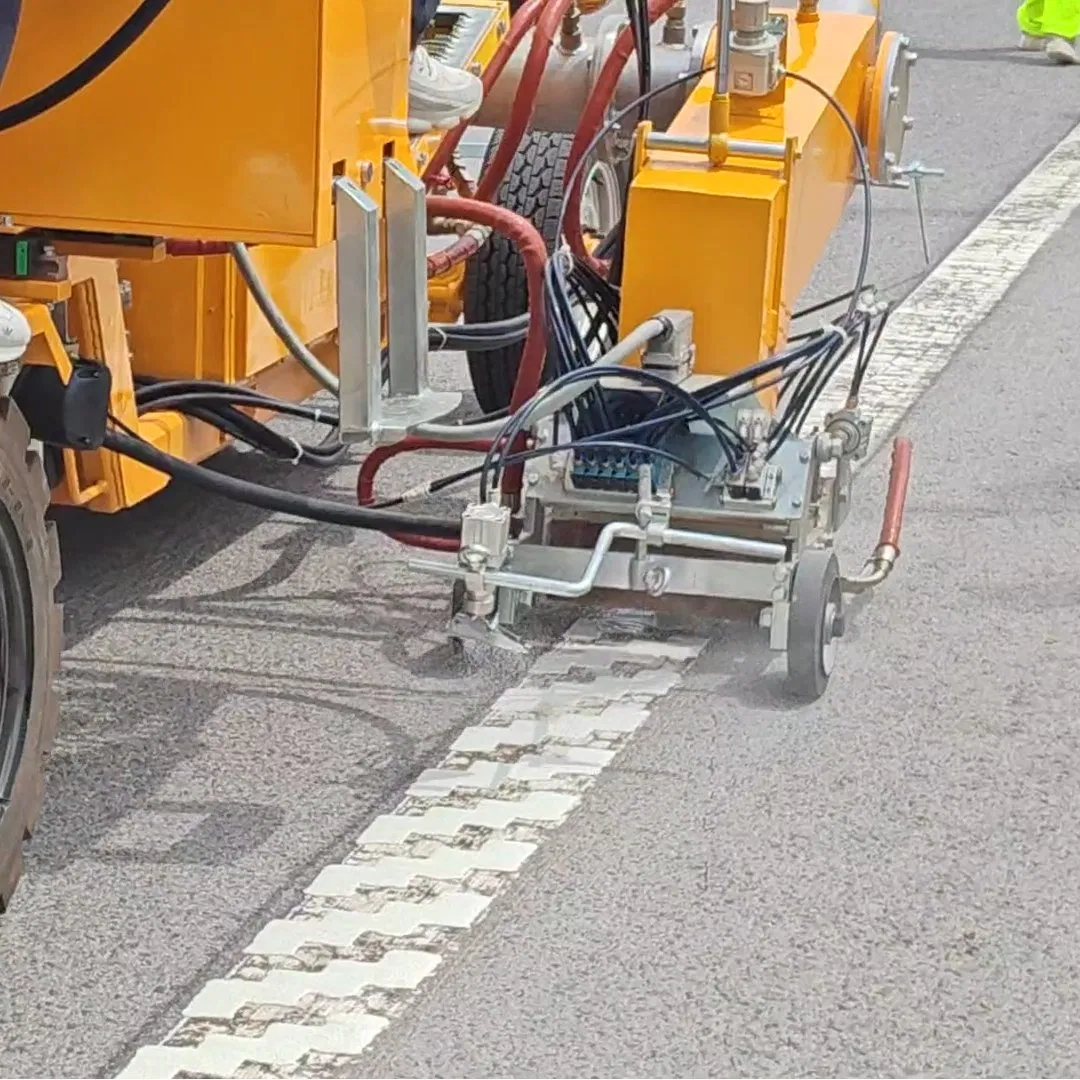

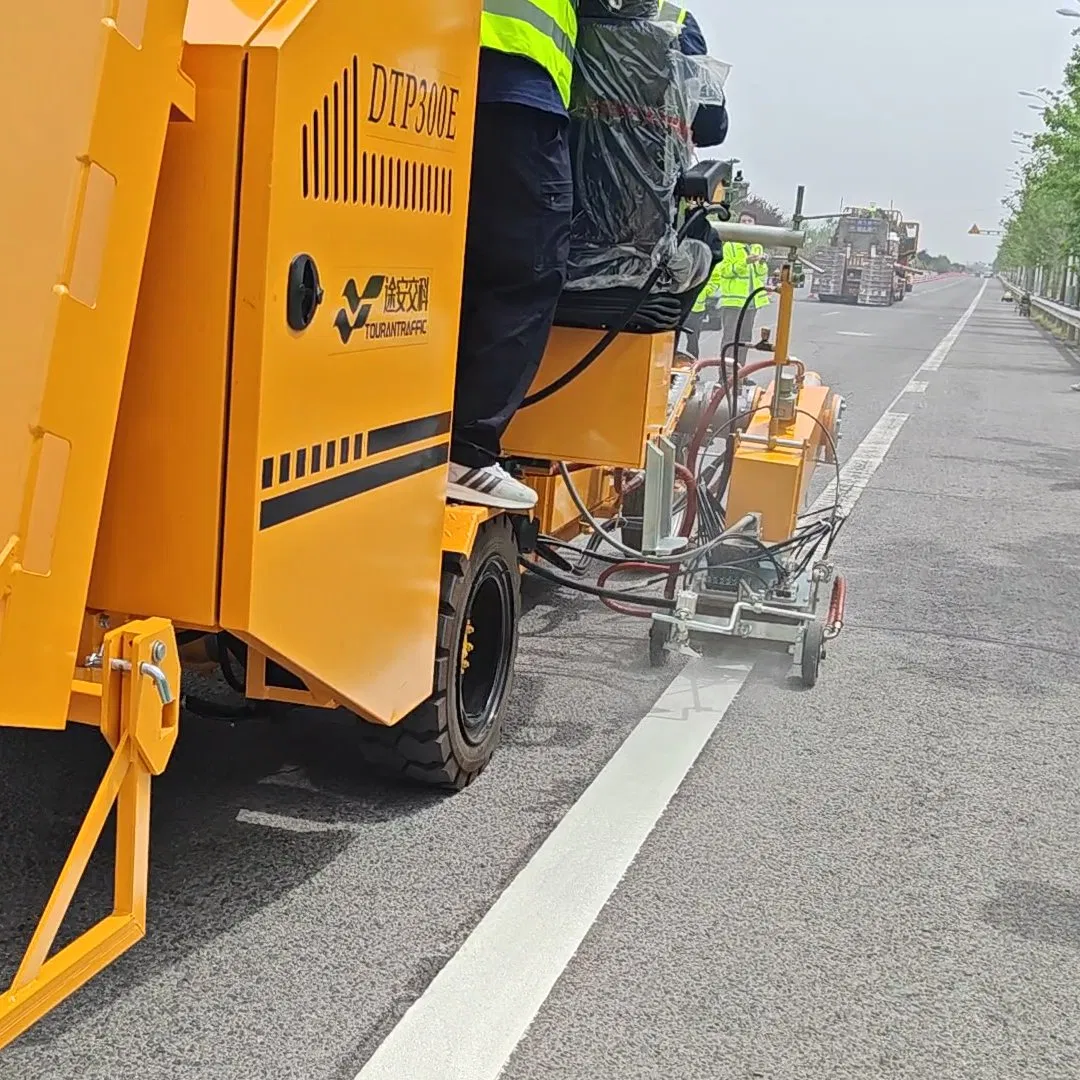

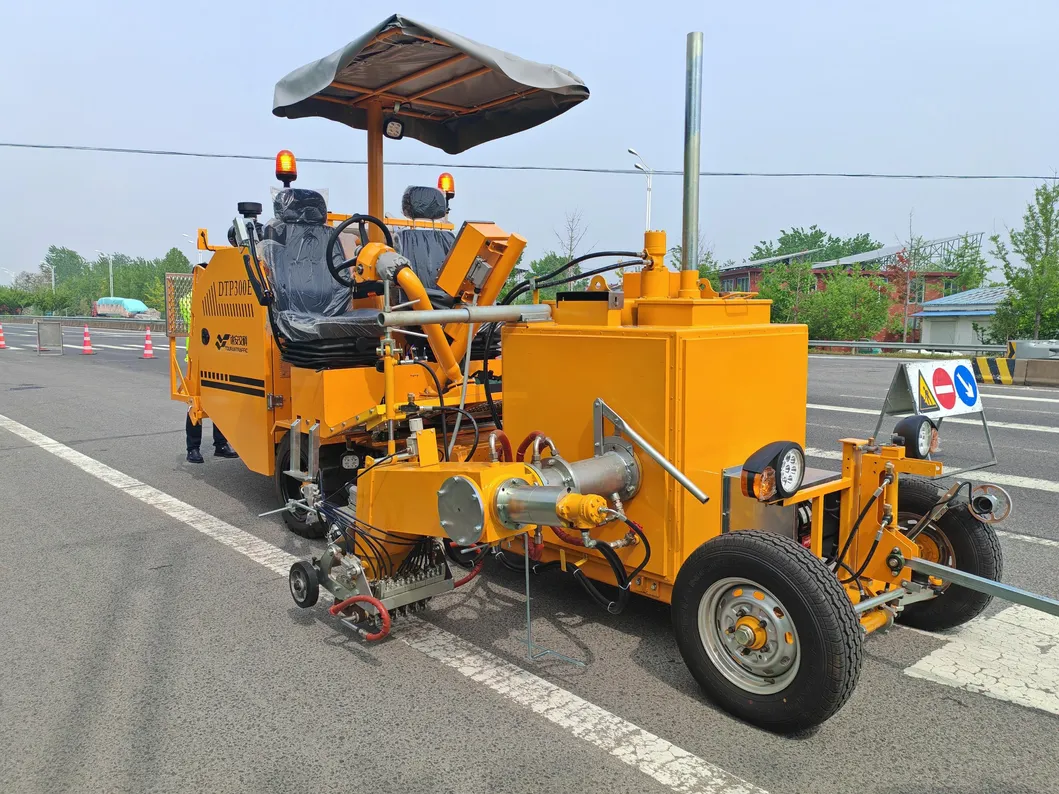

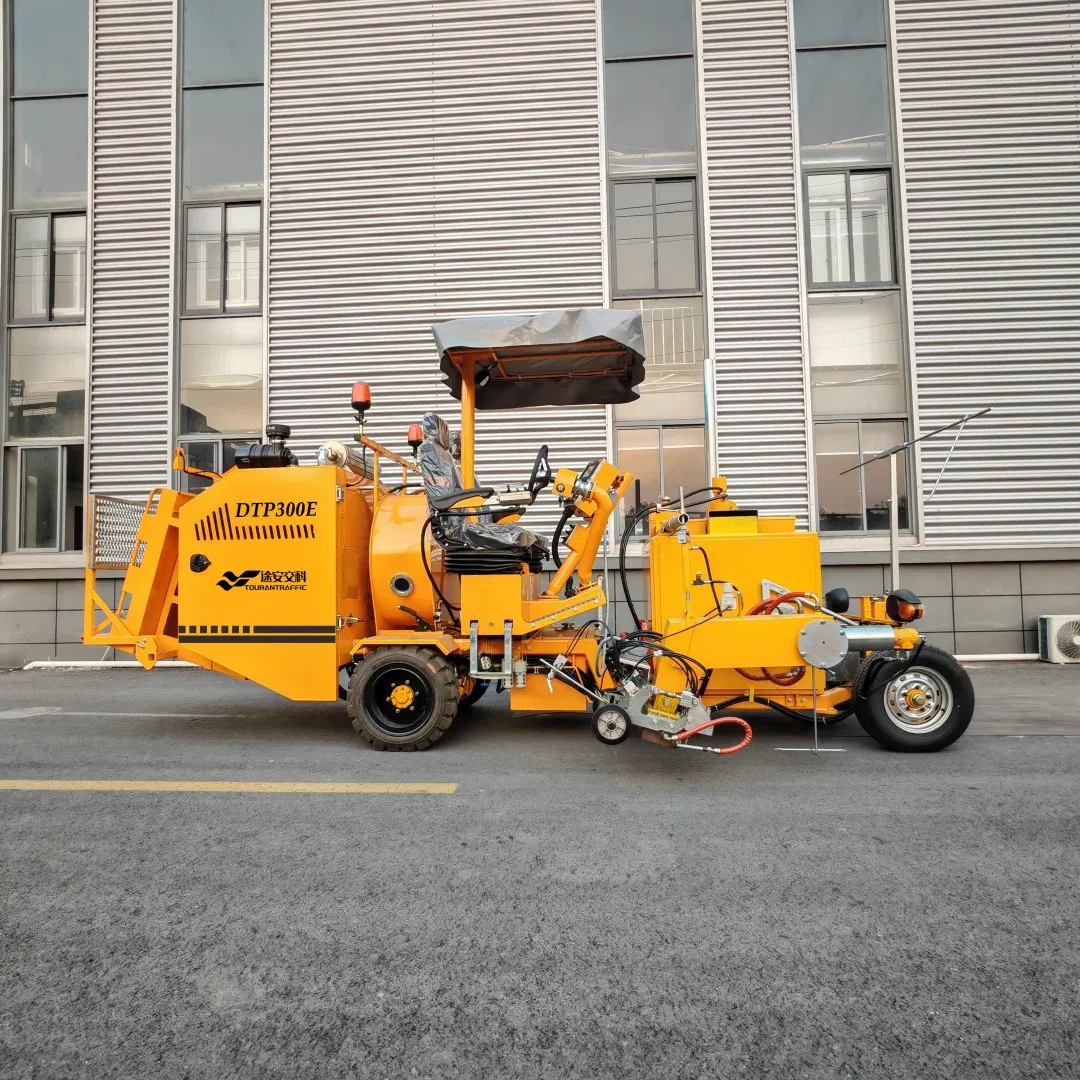

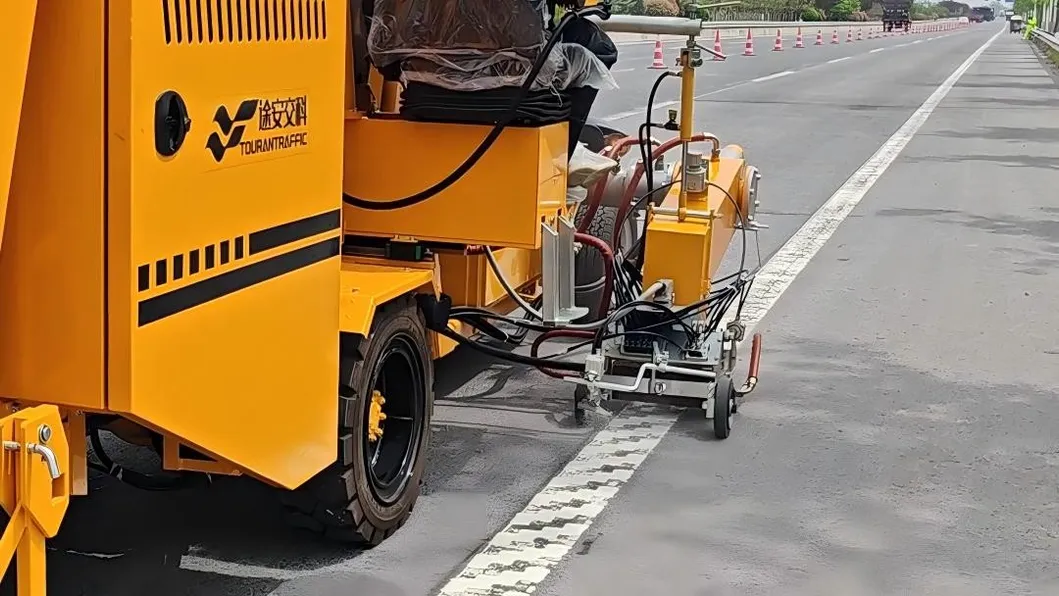

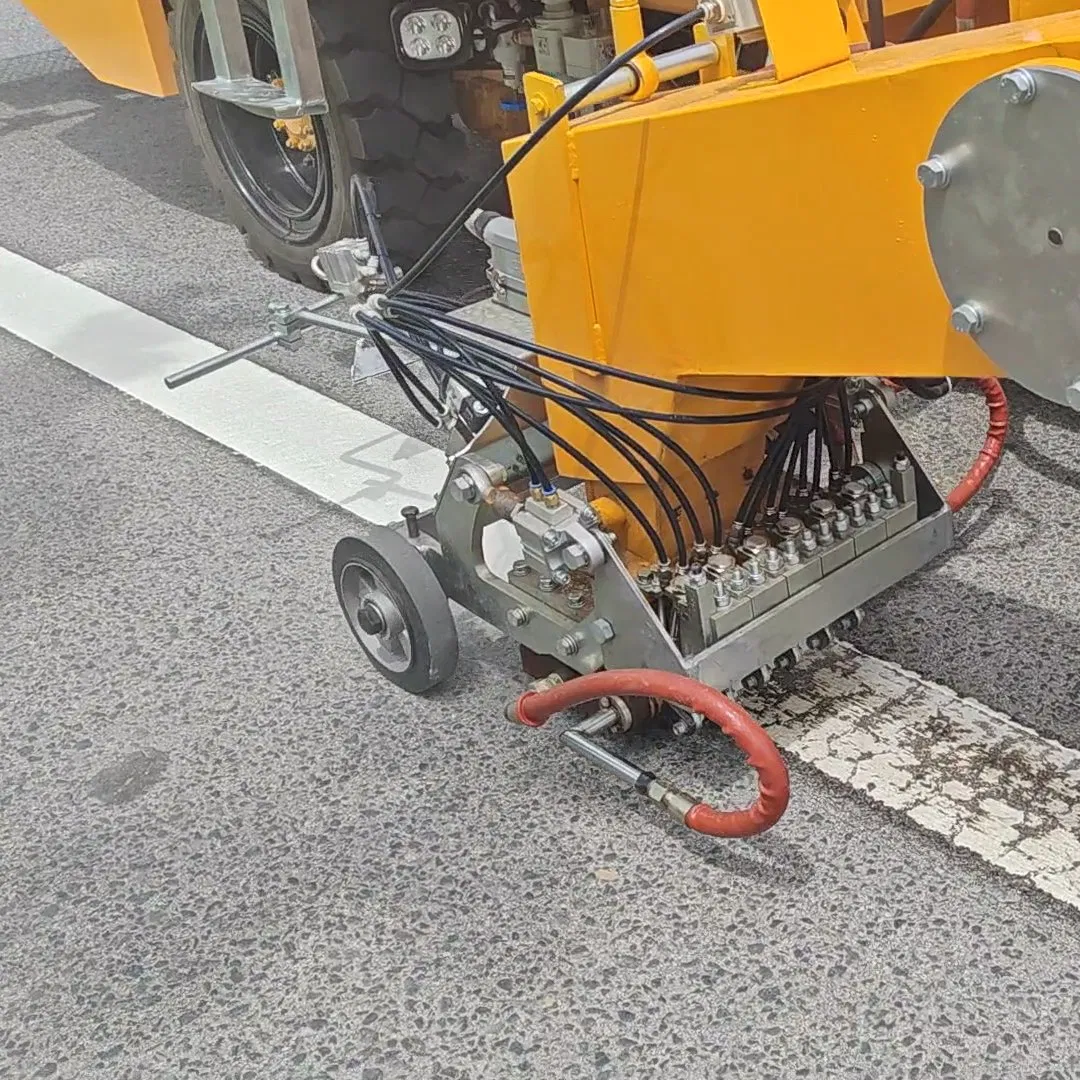

It provides user with thermoplastic flat line or free combination of square line designed for small to medium scale jobs, such as from city areas to urban and interurban roads. The DTP300E can handle both smaller jobs and longer road stretches. The material tank capacity for thermoplastic is 300L for the non-pressurised tank. This is a flexible and efficient driving-type thermoplastic marking machine.
|

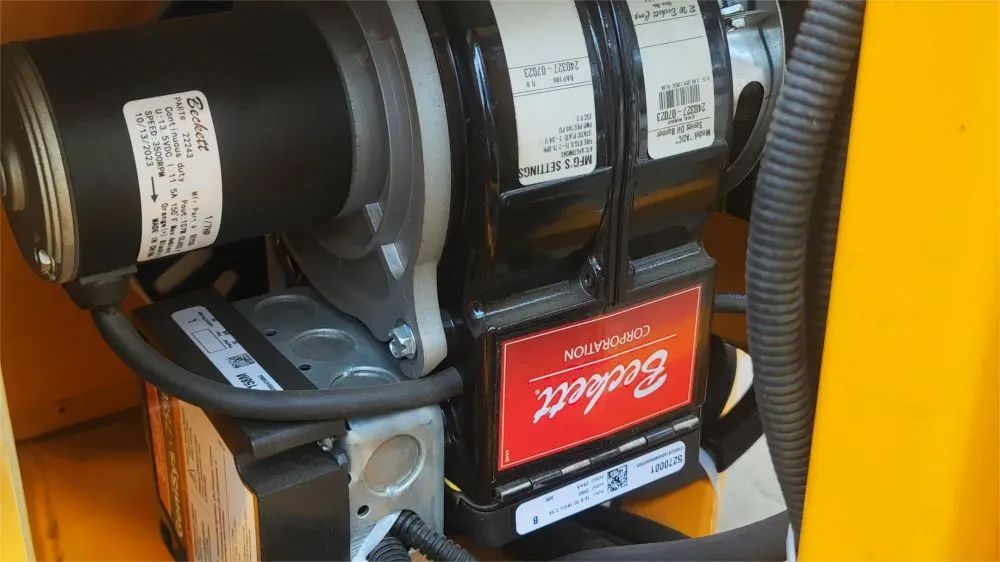

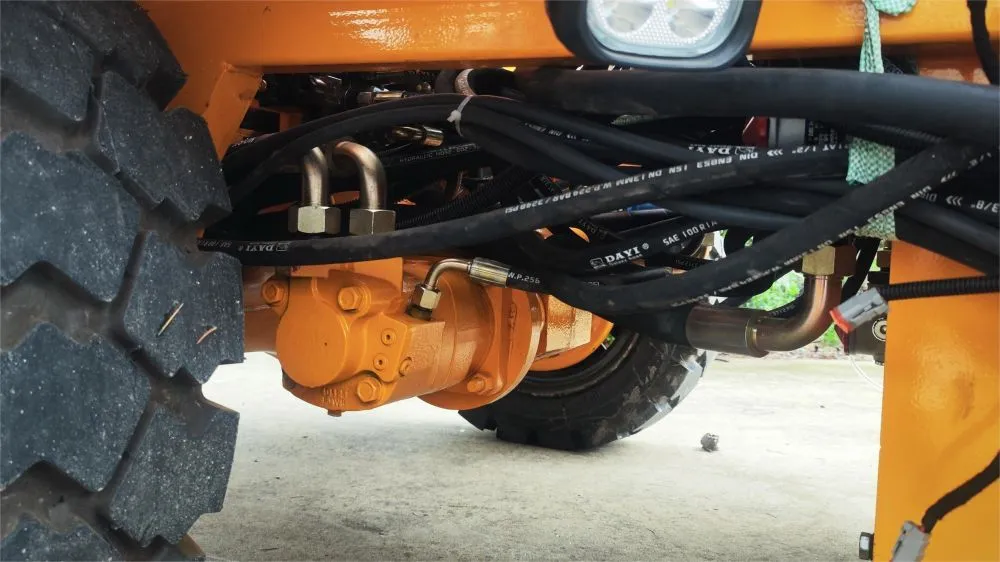

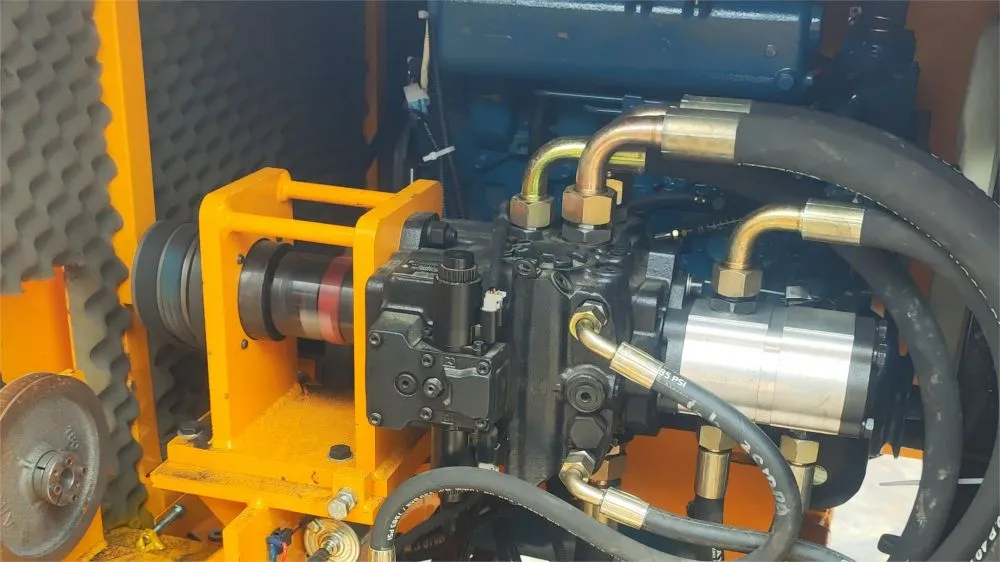

POWERFUL DRIVING: High-performance 49.2kw diesel engine matched with Danfoss hydraulic system for stepless transmission. LARGER MATERIAL TANK: 300L capacity ensures efficient workday progression for major road works. CONSTANT HEATING: Diesel injection burner and Thermal oil circulation system ensure paint stays at optimal application temperature. INTELLIGENT CONTROL: One-click operation for various line types through the electronic control panel. |
| Basic Technical Specs | |||
|---|---|---|---|

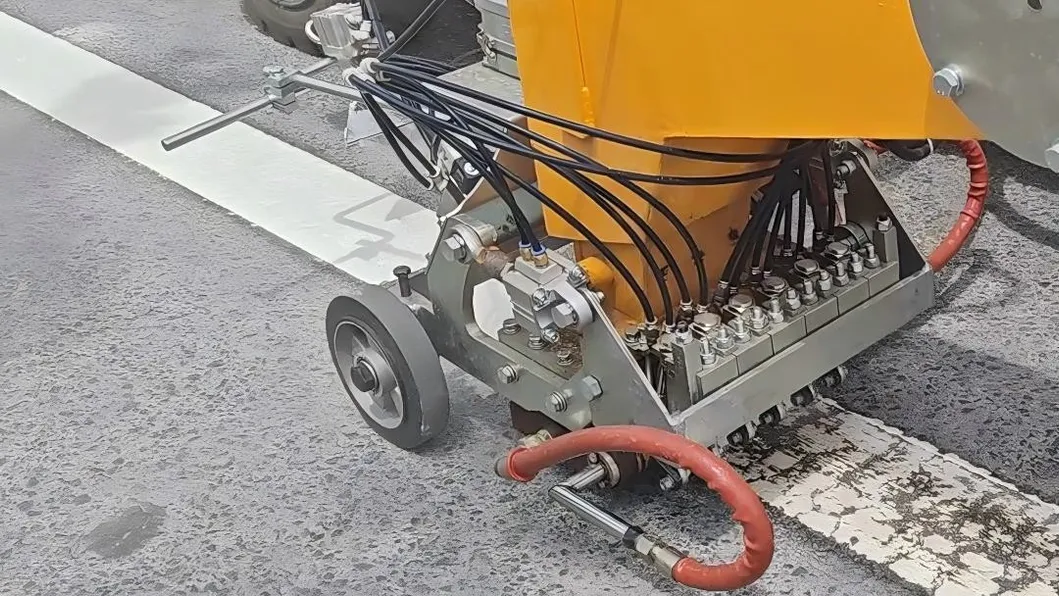

| Marking Method | Extrusion Application | Container Volume | 300L Paint / 150L Glass Beads |
| Air Compressor | 0.6m³ L/min | Heating System | Diesel injecting burner / Thermal oil |
| Engine Power | 4-cylinder 42Kw diesel | Weight | Approx 2800KG |
| Dimension | 4550 x 2200 x 2550mm | Drive Unit | Danfoss Hydraulic System |

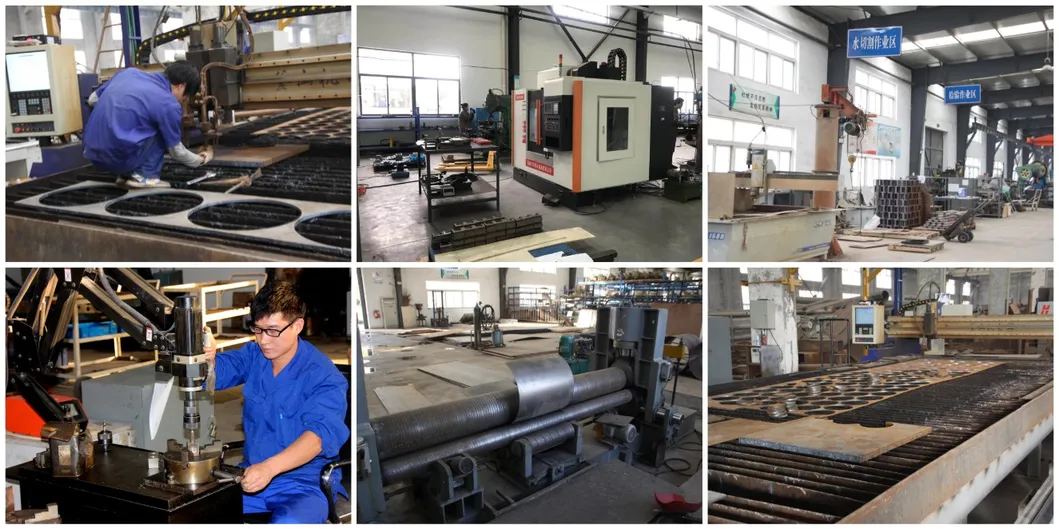

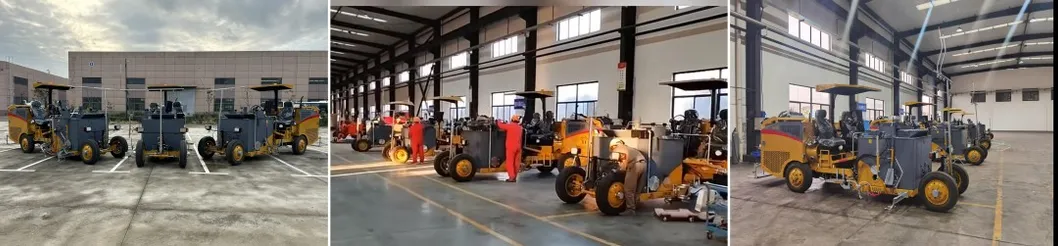

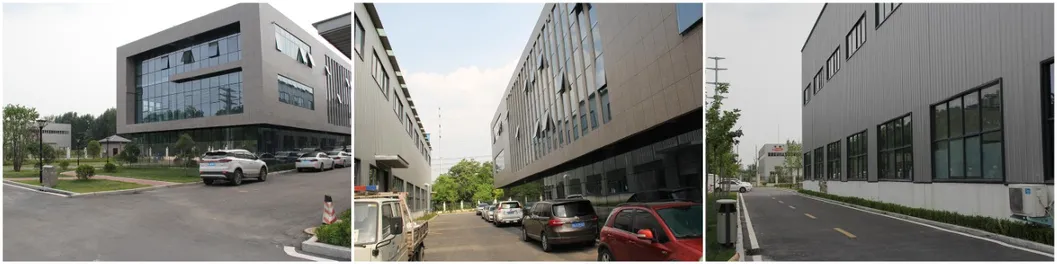

Production Scale: Three machinery factories with a total construction area reaching 100,000 square meters. Specialized in R&D and production of road marking and pavement machinery.
R&D Power: Supported by more than 30 sets of professional mechanical processing equipment and a team of nearly 100 technical workers.
Global Reach: Products are exported to over 35 countries across Southeast Asia, South America, The Middle East, North Africa, and Europe.

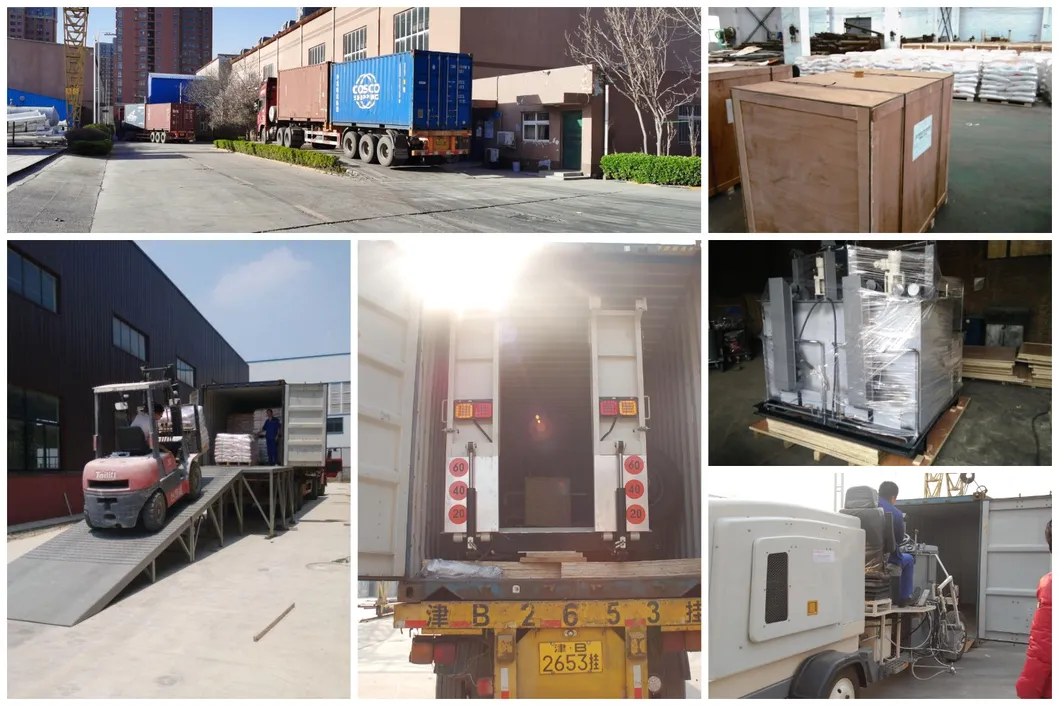

All standardized packaging, suitable for long-distance transportation by Land or Ocean. Professional logistics operation for fast delivery worldwide.
