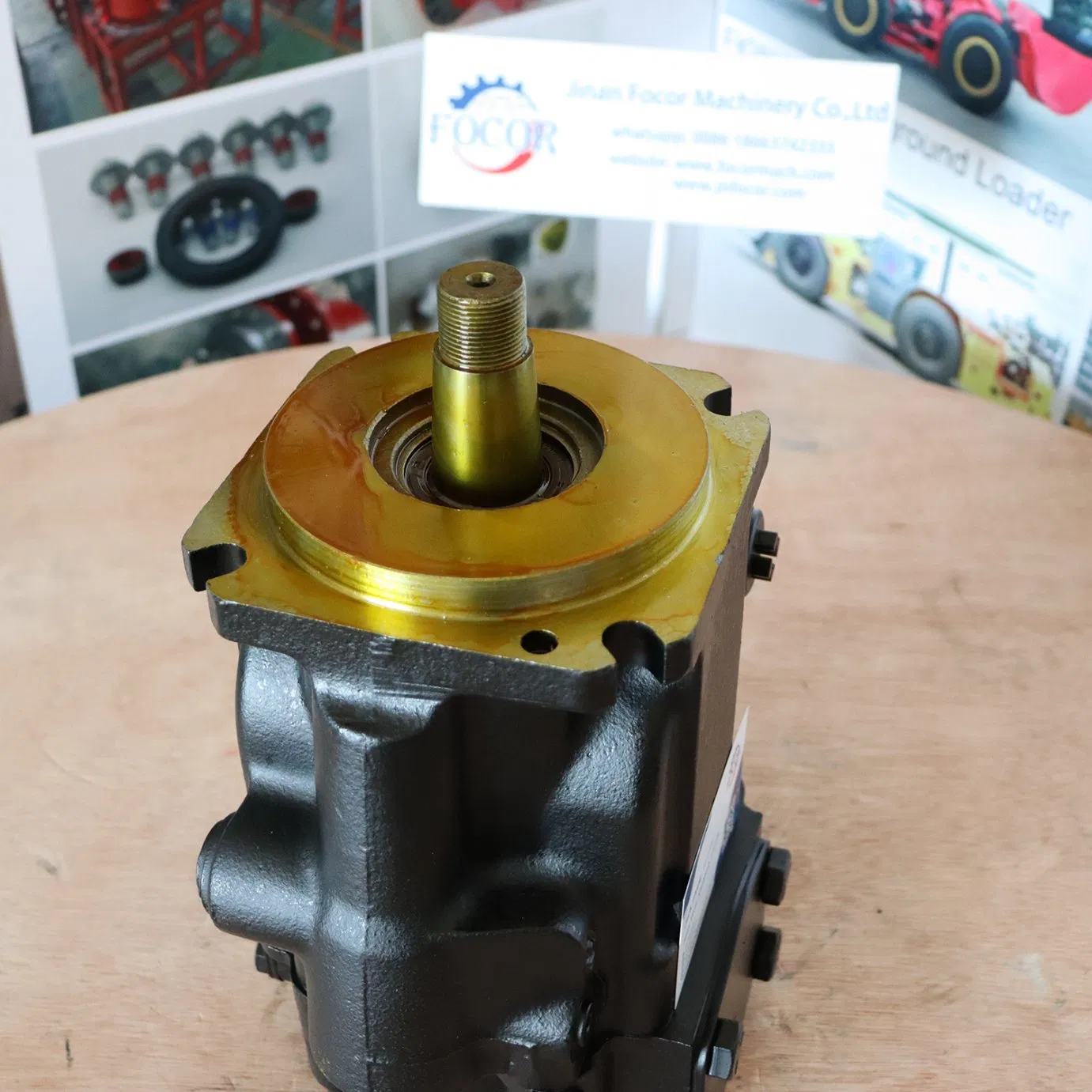

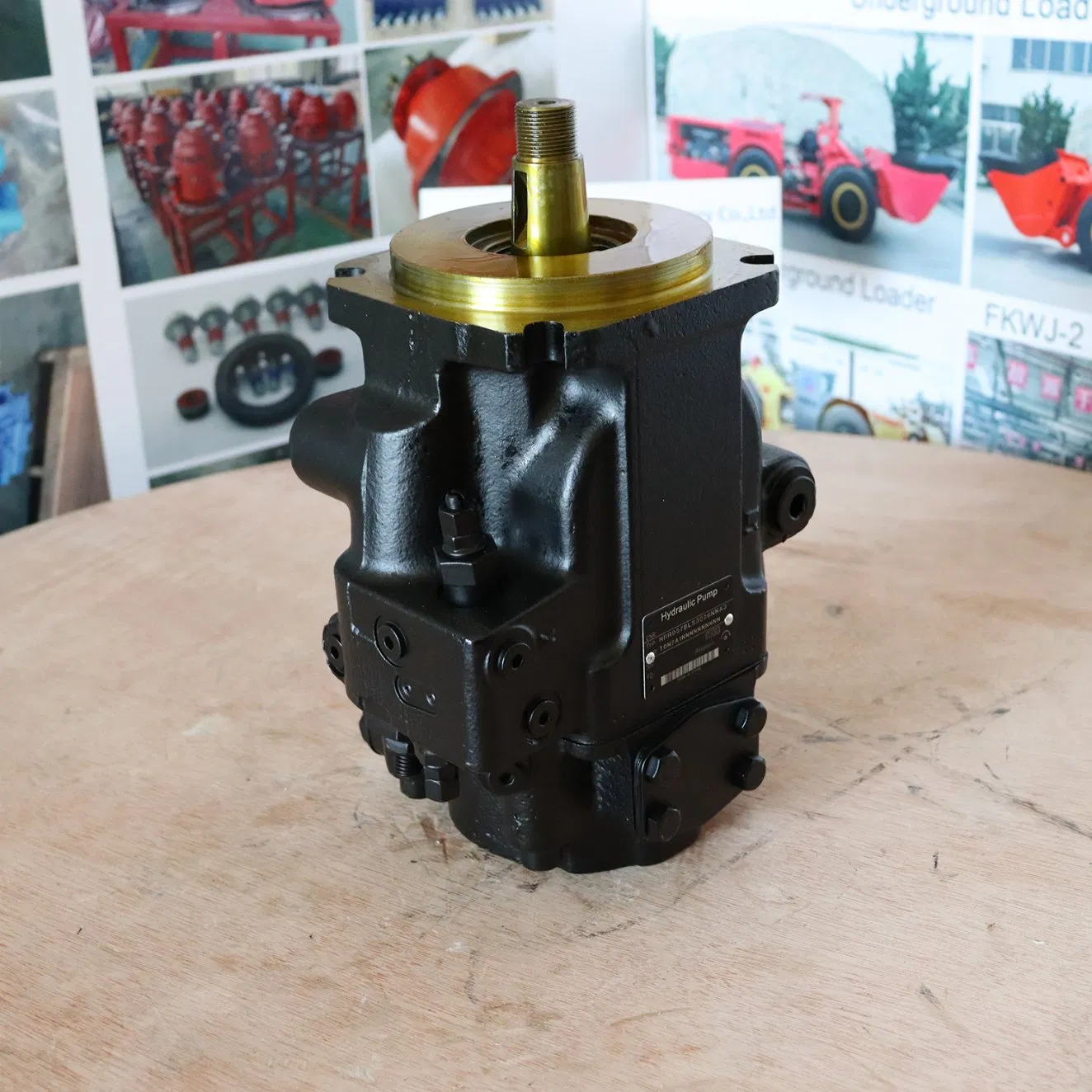

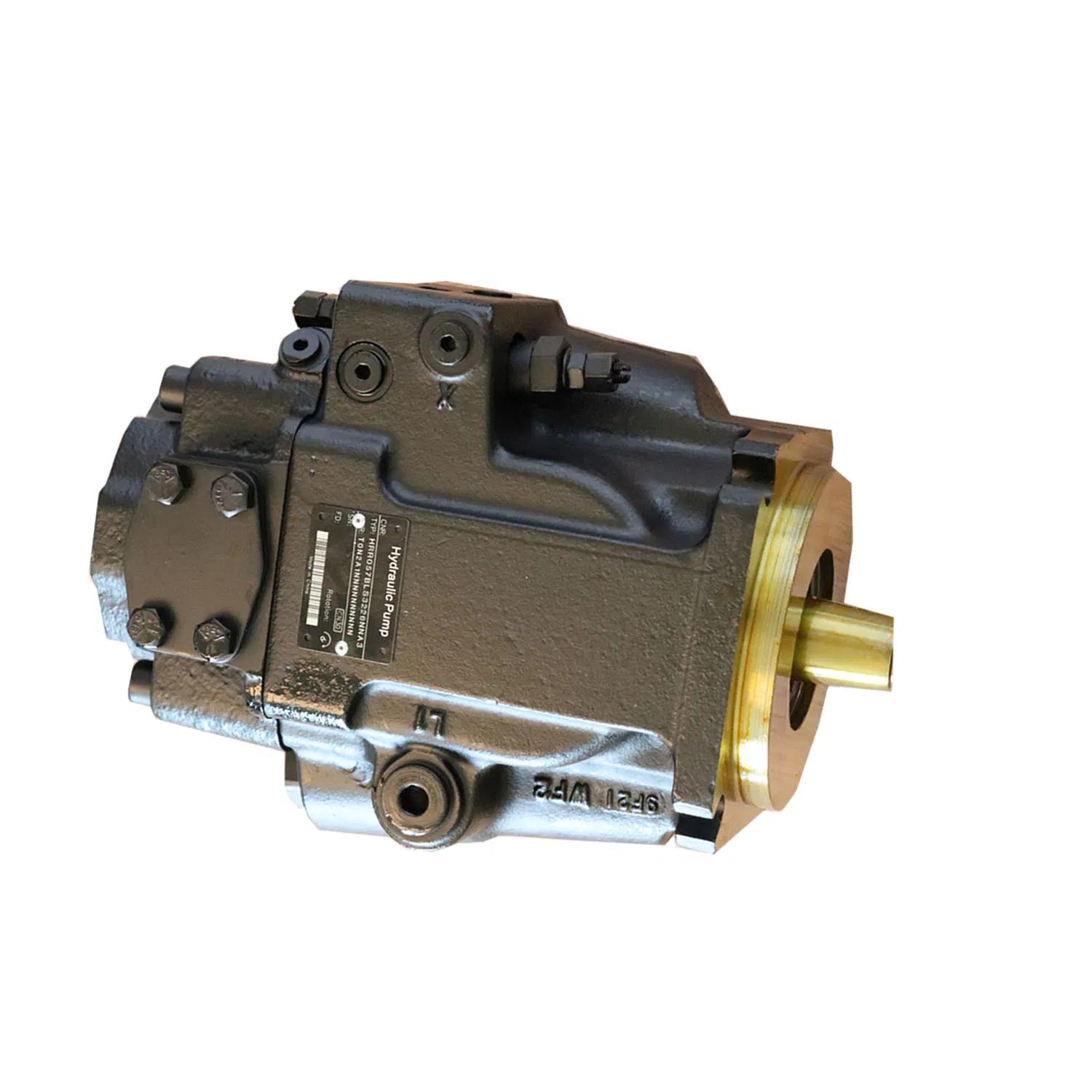

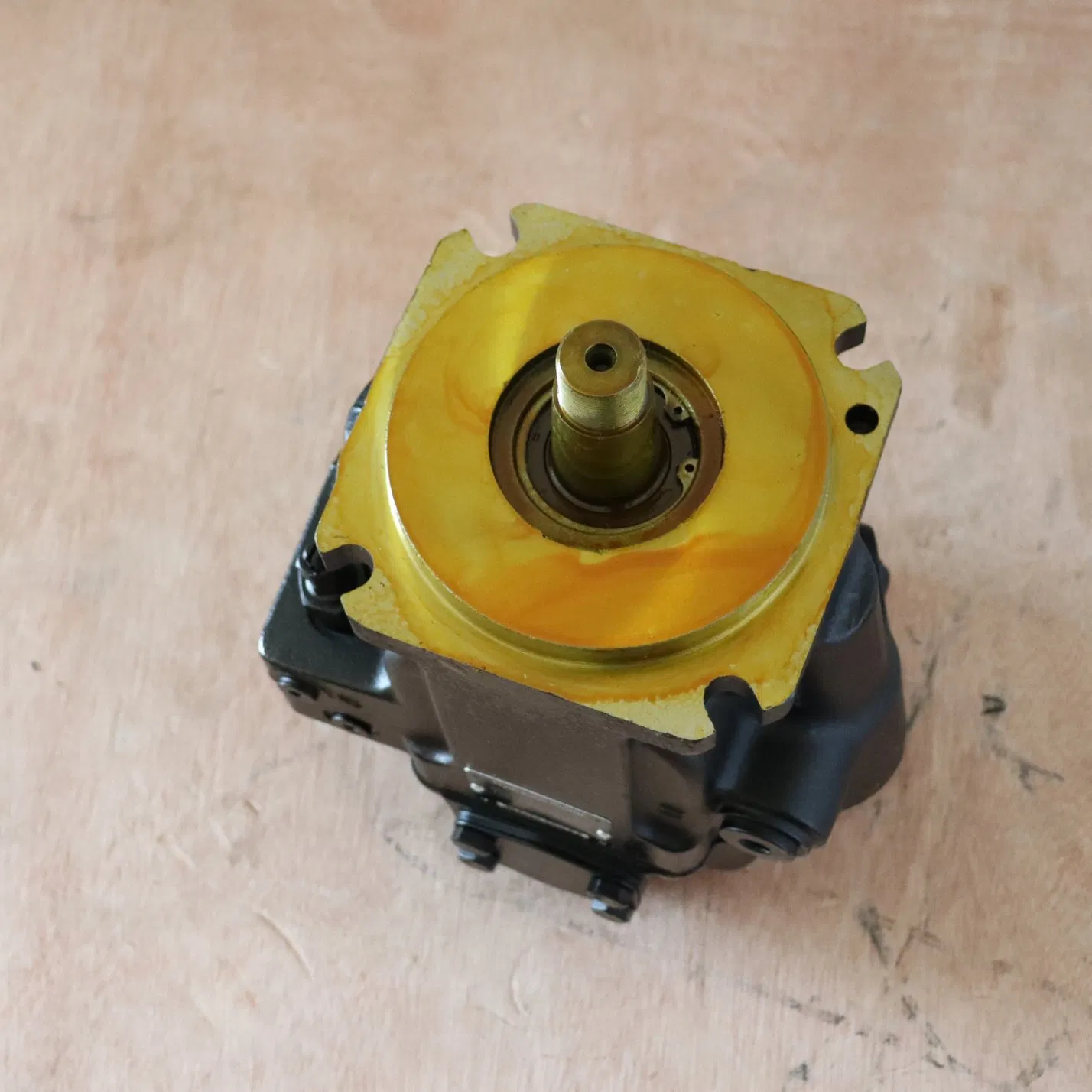

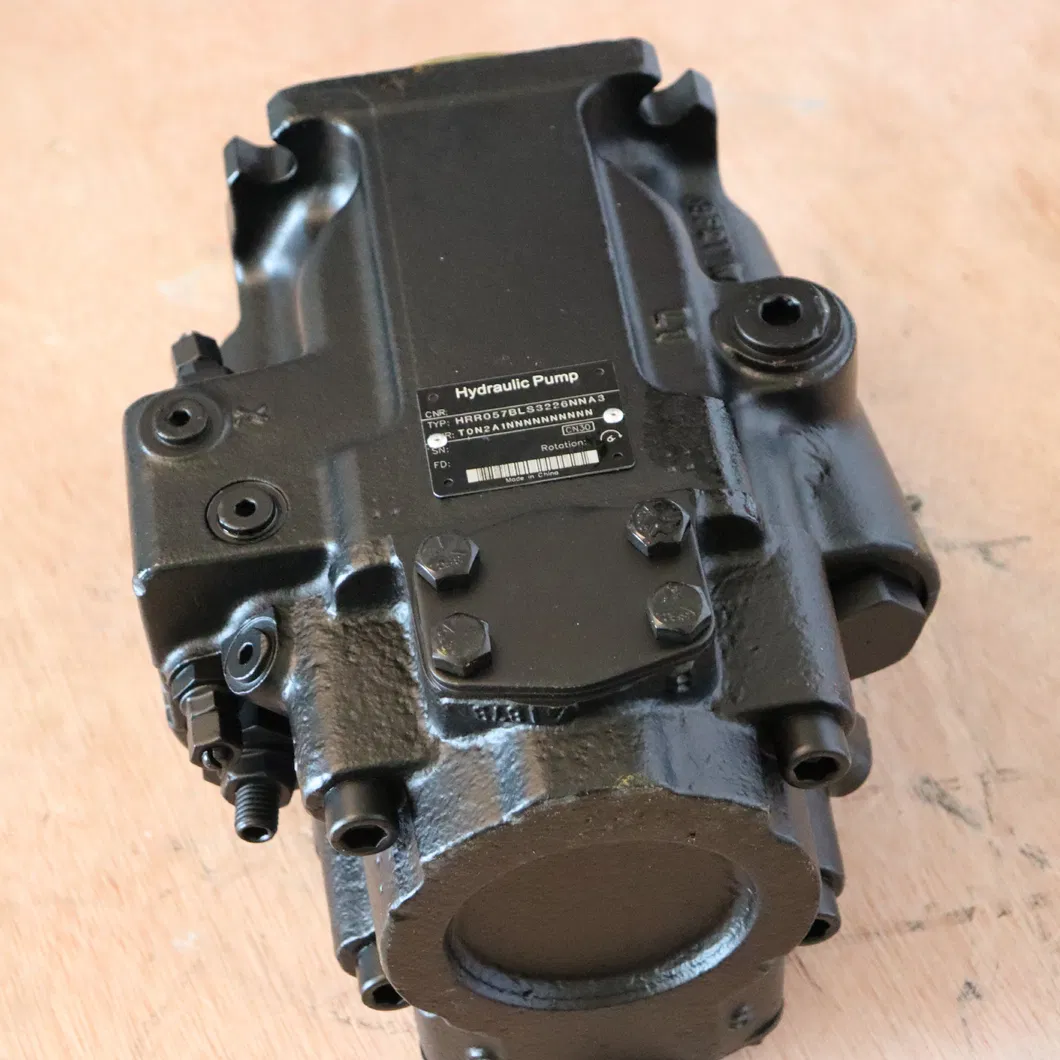

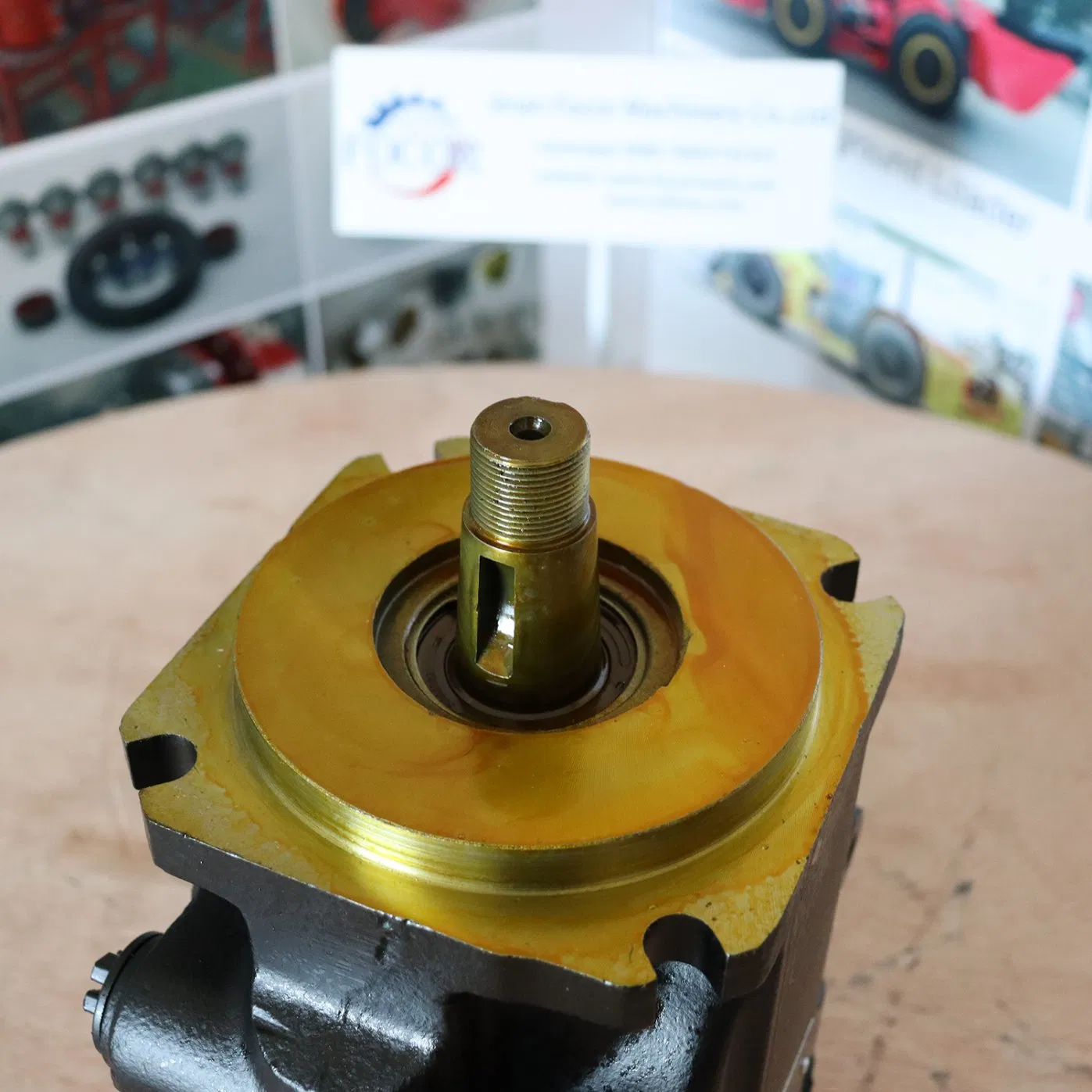

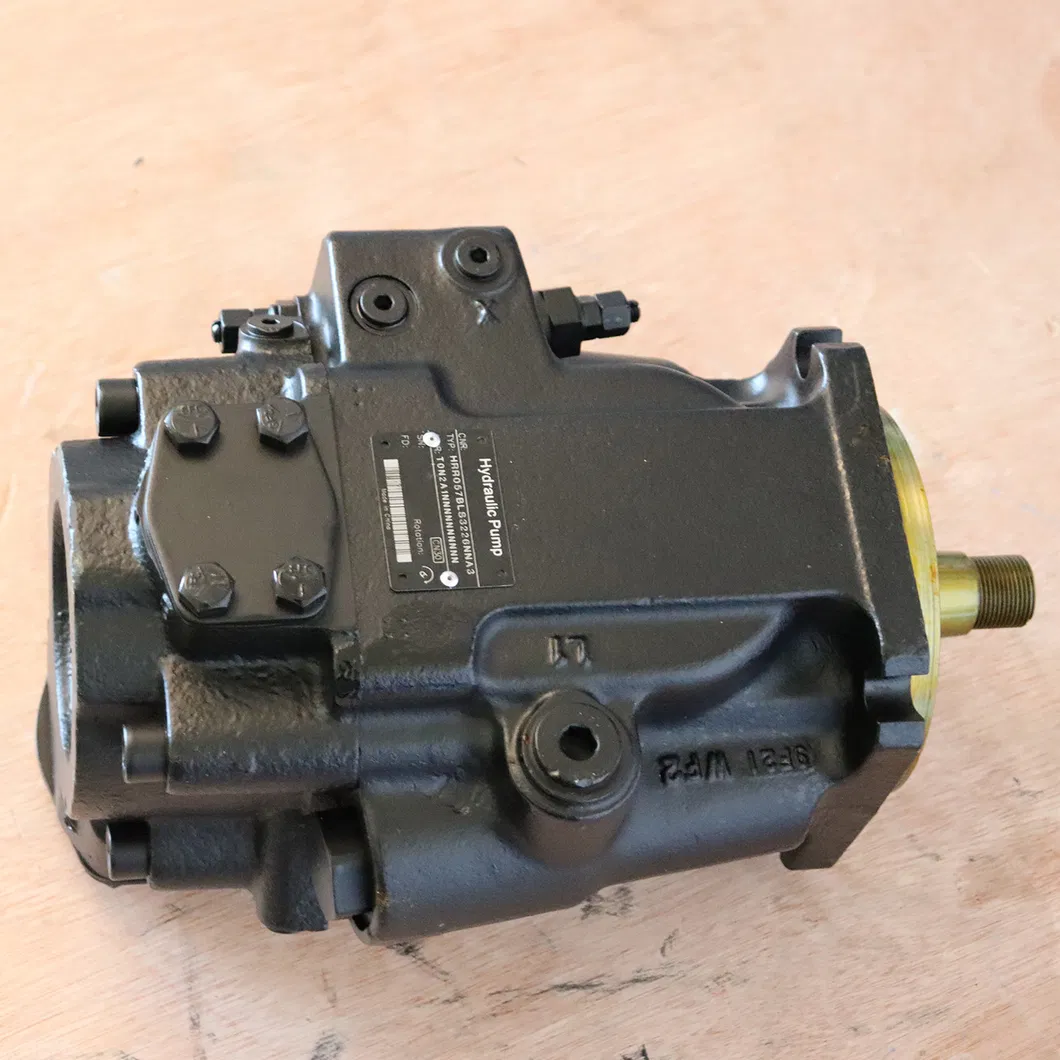

Series 45 Frame L and K pumps feature a single servo piston design with a cradle-type swashplate set in polymer-coated journal bearings. A bias spring and internal forces increase the swashplate angle, while the servo piston decreases it. Nine reciprocating pistons displace fluid from the pump inlet to the outlet as the cylinder block rotates on the input shaft.

• High performance output for demanding environments
• Displacements ranging from 25 cm³ to 147 cm³ [1.53 - 8.97 in3/rev]
• Operating speeds up to 3600 rpm
• Continuous pressures up to 310 bar [4495 psi], peak up to 400 bar [5800 psi]
• Variety of control options: Load sensing and pressure compensated
• Through-drive capability for multi-circuit systems
• Standard mounting flanges, shafts, and porting for easy installation

The 45 series hydraulic pumps are versatile components widely utilized in various heavy-duty machinery:

• Cranes and Telescopic Handlers
• Forklift Trucks and Wheel Loaders
• Sweepers and Backhoe Loaders
• Forestry and Agricultural Machinery
• Industrial Fan Drive Systems
